New Scope Mount
« on: September 21, 2008, 09:42:42 AM »
Awhile ago I mentioned that I had a barrel at EGW Gunsmithing and they were using it to make a mount for our handi rifle.

I got my barrel and mount back this week, its aluminum, weaver/picatinny rail, 0 MOA, orginally they were going to make a 0 and a 15 MOA mount but they for some reason they opted for the 0 instead.

Here it is.




http://egw-guns.com/store/index.php?main_page=product_info&cPath=39&products_id=290
Logged
Doug
.................................................. ........................................
Sticks and stones may break my bones but hollow points expand on impact.

ΜOΛΩΝ ΛΑΒΕ

Offline 9x19

  • Trade Count: (3)
  • Member
  • *
  • Posts: 84
Re: New Scope Mount
« Reply #1 on: September 21, 2008, 10:20:19 AM »
What did you have them do to the barrel, and how did that turn out?

So far, I've gotten along fine with the factory base, but it's nice to have options.
Logged

Offline dk17hmr

  • Trade Count: (22)
  • Contributor
  • ***
  • Posts: 337
  • Gender: Male
Re: New Scope Mount
« Reply #2 on: September 21, 2008, 11:34:45 AM »
They didnt do anything to the barrel.  They used it for dimenions, hole spacing and barrel diameter.  Its a pretty cool mount, on the bottom side, where it is cantilevered out they stamped Handi.  Camera isnt that great so the pic I took of it didnt come out.
Logged
Doug
.................................................. ........................................
Sticks and stones may break my bones but hollow points expand on impact.

ΜOΛΩΝ ΛΑΒΕ

Offline quickdtoo

  • Global Moderator
  • Trade Count: (149)
  • Senior Member
  • *****
  • Posts: 43301
  • Gender: Male
Re: New Scope Mount
« Reply #3 on: September 21, 2008, 12:29:14 PM »
Thanks, one more to add to the 5 or 6 already in the FAQs.  ;)

Tim

http://egw-guns.com/store/index.php?main_page=product_info&products_id=290
Logged
"Always do right, this will gratify some and astonish the rest" -  Mark Twain

Offline ccoorreeyy

  • Trade Count: (3)
  • Avid Poster
  • **
  • Posts: 233
  • Gender: Male
Re: New Scope Mount
« Reply #4 on: September 26, 2008, 12:13:03 PM »
Looks nice!  Let us know how you like it after mounting the scope.
Corey
Logged
This is the day that the Lord hath made!!  I will rejoice and be glad in it!!

Offline PigBoy Crabshaw

  • GBO Supporter
  • Trade Count: (2)
  • Contributor
  • *****
  • Posts: 436
  • Gender: Male
Re: New Scope Mount
« Reply #5 on: September 26, 2008, 07:37:41 PM »
Are you removing fixed sites and adding this for scope related reasons, or are you replacing the original one that comes on a Handi? -g
Logged
"In God We Trust - Everyone else keep you hands where I can see them!"

Offline Fred M

  • GBO Supporter
  • Trade Count: (1)
  • Senior Member
  • *****
  • Posts: 2362
    • Fred The Reloader and Wildcatter
Re: New Scope Mount
« Reply #6 on: September 26, 2008, 08:35:05 PM »
Also I am not too sure whether I like that thinned out over hang.
It has to be a very long scope to make good use of it. I installed two single blocks on my two rifle they are both solid on the barrel with two
screws each.
Logged
Fred M.
From Alberta Canada.

Offline dk17hmr

  • Trade Count: (22)
  • Contributor
  • ***
  • Posts: 337
  • Gender: Male
Re: New Scope Mount
« Reply #7 on: September 27, 2008, 01:59:52 AM »
That is my Hornet barrel,  I will be taking the sights off.  Havent got around to mounting a scope on it yet.
Logged
Doug
.................................................. ........................................
Sticks and stones may break my bones but hollow points expand on impact.

ΜOΛΩΝ ΛΑΒΕ

Offline quickdtoo

  • Global Moderator
  • Trade Count: (149)
  • Senior Member
  • *****
  • Posts: 43301
  • Gender: Male
Re: New Scope Mount
« Reply #8 on: September 27, 2008, 04:42:42 AM »

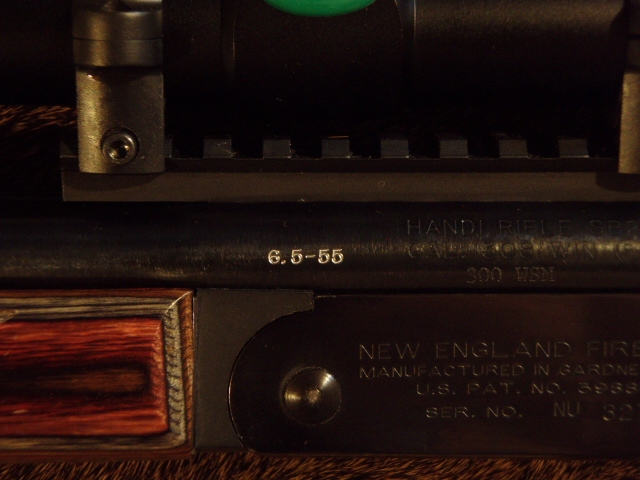

For the most solid mount, the steel Warne Maxima Tactical Picatinny M681M gets my vote.  ;)

Tim


Logged
"Always do right, this will gratify some and astonish the rest" -  Mark Twain

Offline OR-E-Gun Bill

  • GBO Supporter
  • Trade Count: (18)
  • A Real Regular
  • *****
  • Posts: 907
  • Gender: Male
Re: New Scope Mount
« Reply #9 on: September 27, 2008, 06:19:54 AM »

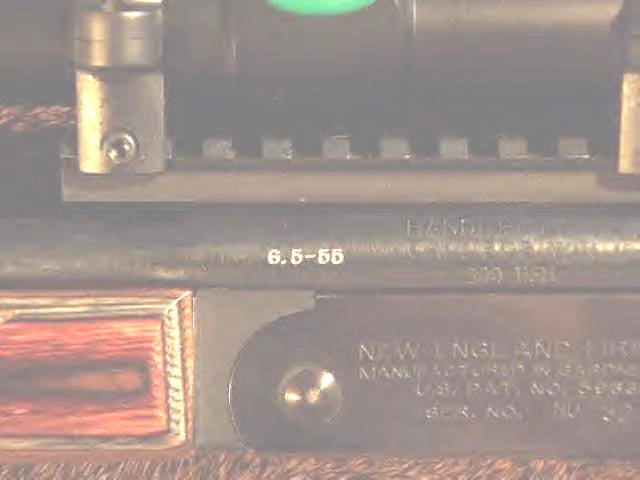

Couldn't see the rail in the photo. Only the 6.5-55 shows up on my end.
Gave it a little brightness and contrast...now I see it!  ;D


Bill
Logged

Offline John020769

  • Trade Count: (0)
  • Avid Poster
  • **
  • Posts: 124
  • Gender: Male
Re: New Scope Mount
« Reply #10 on: September 27, 2008, 07:13:48 AM »
Tim where did You get this rail? Want to put 1 on a 20ga youth for Son to put a RedDot on that is having hard time with no rear sight. Local gunshop is ? drill and tape. I thingking JBweld or other but need a rail for RedDot............John
Logged

Offline quickdtoo

  • Global Moderator
  • Trade Count: (149)
  • Senior Member
  • *****
  • Posts: 43301
  • Gender: Male
Re: New Scope Mount
« Reply #11 on: September 27, 2008, 08:07:45 AM »
John, I got my M681M from TGS as listed in the FAQs, but they're out now, it's available from several sources as is the M981M weaver style steel base, it's also available in gloss and silver as shown in the FAQs.

Thanks Bill!! ;D

Tim

http://www.google.com/search?sourceid=navclient&ie=UTF-8&rlz=1T4GGIH_enUS235US236&q=warne+M981M

http://www.google.com/search?sourceid=navclient&ie=UTF-8&rlz=1T4GGIH_enUS235US236&q=warne+M681M

Logged
"Always do right, this will gratify some and astonish the rest" -  Mark Twain

Offline dpe.ahoy

  • GBO Supporter
  • Trade Count: (7)
  • Senior Member
  • *****
  • Posts: 3363
  • Gender: Male
Re: New Scope Mount
« Reply #12 on: September 27, 2008, 10:25:10 AM »
Anybody notice how Tim made sure the 6.5-55 was centered, spotlighted ect.?  Show-off. ;D ;D  We are all envious. ;)  DP
Logged
RIP Oct 27, 2017

Handi's:22Shot, 22LR, 2-22Mag, 22Hornet, 5-223, 2-357Max, 44 mag, 2-45LC, 7-30 Waters, 7mm-08, 280, 25-06, 30-30, 30-30AI, 444Marlin, 45-70, AND 2-38-55s, 158 Topper 22 Hornet/20ga. combo;  Levers-Marlins:Two 357's, 44 mag, 4-30-30s, RC-Glenfields 36G-30A & XLR, 3-35 Rem, M-375, 2-444P's, 444SS, 308 MX, 338Marlin MXLR, 38-55 CB, 45-70 GS, XS7 22-250 and 7mm08;  BLR's:7mm08, 358Win;  Rossi: 3-357mag, 44mag, 2-454 Casull; Winchesters: 7-30 Waters, 45Colt Trapper; Bolt actions, too many;  22's, way too many.  Who says it's an addiction?

Offline quickdtoo

  • Global Moderator
  • Trade Count: (149)
  • Senior Member
  • *****
  • Posts: 43301
  • Gender: Male
Re: New Scope Mount
« Reply #13 on: September 27, 2008, 10:37:26 AM »
 ;D ;D ;D I just happened to have that pic from the 6.5-55 thread, and it's the only pic I have of the M681M base mounted, so I shared it, true, it's centered on the 6.5x55 marking since that's the topic it was taken for, maybe I'll get to shoot it sometime soon...even, but that's another topic too!  ;)

I'm sorry about the highjack dk17hmr. :-[

Tim
Logged
"Always do right, this will gratify some and astonish the rest" -  Mark Twain

Offline quickdtoo

  • Global Moderator
  • Trade Count: (149)
  • Senior Member
  • *****
  • Posts: 43301
  • Gender: Male
Re: New Scope Mount
« Reply #14 on: September 27, 2008, 12:31:27 PM »

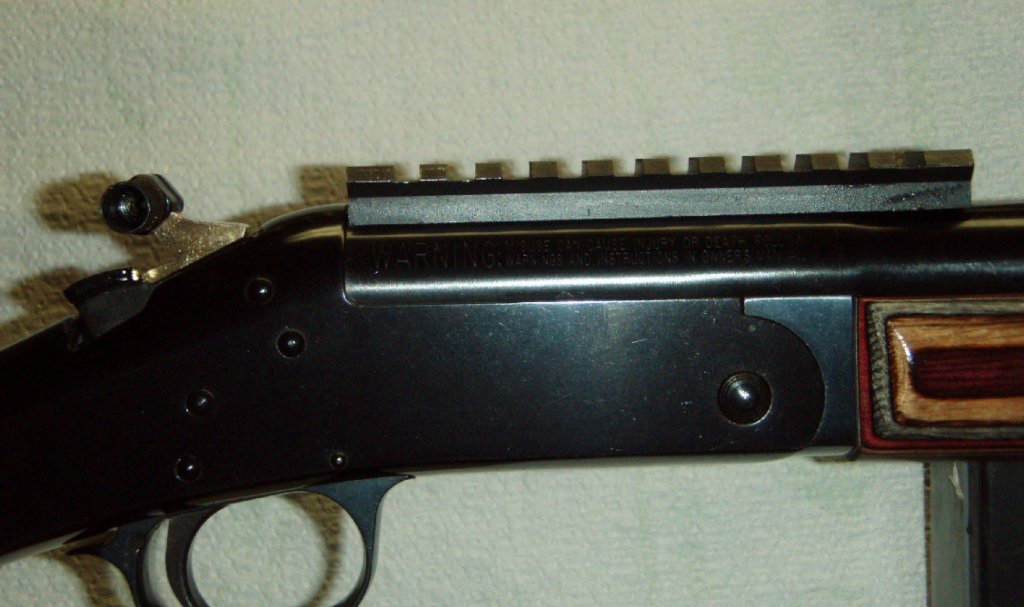

Here's a better pic, I removed the scope and shot from the other side just for you guys so the Swede doesn't distract ya!! ;D

Tim

Logged
"Always do right, this will gratify some and astonish the rest" -  Mark Twain

Offline dk17hmr

  • Trade Count: (22)
  • Contributor
  • ***
  • Posts: 337
  • Gender: Male
Re: New Scope Mount
« Reply #15 on: September 27, 2008, 04:00:44 PM »
Quote
I'm sorry about the highjack dk17hmr.

No worries, I dont care
Logged
Doug
.................................................. ........................................
Sticks and stones may break my bones but hollow points expand on impact.

ΜOΛΩΝ ΛΑΒΕ

Offline carbineman

  • GBO Supporter
  • Trade Count: (58)
  • Senior Member
  • *****
  • Posts: 1322
Re: New Scope Mount
« Reply #16 on: December 27, 2008, 10:20:50 AM »
Quote from: dk17hmr on September 27, 2008, 04:00:44 PM
Quote
I'm sorry about the highjack dk17hmr.

No worries, I dont care

In that case in my effort to get my scope lower I stumbled across this on a Tracker II 20 ga. we purchased used. It is the Weaver 62 base with a lower height profile. This set up is perfect for me and comes to point well vs the higher scope rails that everyone offers that leave me just a bit off target when shouldered. The pic shows a Weaver 1-3x20mm mounted with Burris Z high rings. Might even have gotten away with mediums. I think this would only work with the 20mm compact scopes.

I picked up a 62 for a Topper 30-30 and am trying to see if I can cut off some of the length of the rail and drill new holes in it for a NEF/H&R barrel that is already drilled and tapped. The existing holes don't quite line up but are close enough to mess it up for new holes to be drilled in the rail. Time to start experimenting. BTW on the Tracker II since no holes were drilled in the barrel the Weaver 62 was easy to use.

Thanks guys for posting all the rail possibilities. Just thought I would add mine also.
