Naval 24 Pounder
« on: February 05, 2008, 03:40:46 PM »

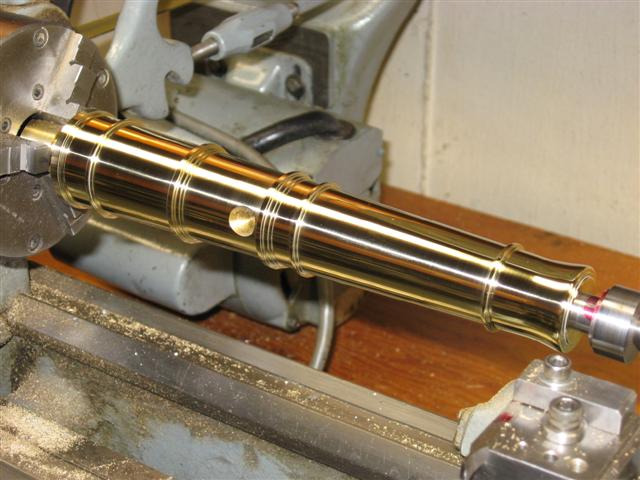

Started on my version of a Naval 24 Pounder. Barrel is brass 9 1/2" X  1 5/8" dia. with a 1/2" bore which

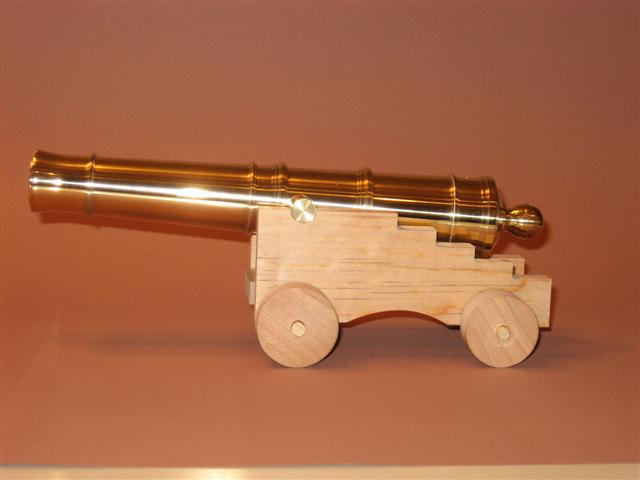

I made on my 9" South Bend Lathe. Mock up pine carriage and wheels to get my proportions right for
"the look" I'm after. Finished carriage will be Cherry or Rosewood with brass wheels and axles with Cherry or Rosewood inserts.



Logged

Offline KABAR2

  • Trade Count: (1)
  • Senior Member
  • *****
  • Posts: 2830
Re: Naval 24 Pounder
« Reply #1 on: February 05, 2008, 03:49:11 PM »
Looks like a fine cannon! By the sounds of it you'll have it finished in no time, I look forward to seeing more photos.

Allen <><
Logged
Mr president I do not cling to either my gun or my Bible.... my gun is holstered on my side so I may carry my Bible and quote from it!

Sed tamen sal petrae LURO VOPO CAN UTRIET sulphuris; et sic facies tonituum et coruscationem si scias artficium

Offline lance

  • Trade Count: (0)
  • Senior Member
  • *****
  • Posts: 1249
  • Gender: Male
Re: Naval 24 Pounder
« Reply #2 on: February 05, 2008, 04:29:31 PM »
That is nice looking!!! keep us updated with progress pictures.
Logged
PALADIN had a gun.....I have guns, mortars, and cannons!

Offline Josco

  • Trade Count: (0)
  • Member
  • *
  • Posts: 57
Re: Naval 24 Pounder
« Reply #3 on: February 05, 2008, 04:38:29 PM »
Thanks for the compliments. I always had a fascination with old Naval guns and was delighted when I found this wonderful Forum. I'll post pics. of my progress on this one.
Did the steps on the back of Naval Carriages serve a purpose and is there a name for them?
Thanks in advance.

  Joe Scope
Logged

Offline Cat Whisperer

  • Trade Count: (2)
  • Senior Member
  • *****
  • Posts: 7493
  • Gender: Male
  • Pulaski Coehorn Works
Re: Naval 24 Pounder
« Reply #4 on: February 06, 2008, 01:17:27 PM »
WELCOME to the board!

You have style, posting pictures of such a fine piece of brass craftsmanship!

Logged
Tim K                 www.GBOCANNONS.COM
Cat Whisperer
Chief of Smoke, Pulaski Coehorn Works & Winery
U.S.Army Retired
N 37.05224  W 80.78133 (front door +/- 15 feet)

Offline Terry C.

  • Trade Count: (0)
  • Senior Member
  • *****
  • Posts: 1215
  • Gender: Male
  • I see what you did there...
Re: Naval 24 Pounder
« Reply #5 on: February 06, 2008, 02:03:11 PM »
That's some beautiful machine work!

Will this be a shooter?


I don't know what the steps are called, but they're there for a reason. You set a handspike across the step in the cheek, with the end under the tube, to raise the breech of the gun and adjust the quoin.

The multiple steps give you a better range of adjustment.

Smaller guns could possibly be wrassled up by hand, but raising the breech on a 24-pounder is going to require some leverage.
Logged

Offline Josco

  • Trade Count: (0)
  • Member
  • *
  • Posts: 57
Re: Naval 24 Pounder
« Reply #6 on: February 07, 2008, 10:13:13 AM »
Thanks again for the compliments and the answer to my question regarding the purpose of the steps on the carriage. I had a feeling that's what they were for but never saw anything in print.

I'm sure I'll want to fire it a few times upon completion then it will decorate my den.
