Author Topic: HMR Carriage Evolution . (Read 683 times)

armorer77 · « **on:** December 26, 2011, 07:15:44 AM »

I am refining the "Garrison Carriage " that I make so you can buy a complete cannon ready to shoot .

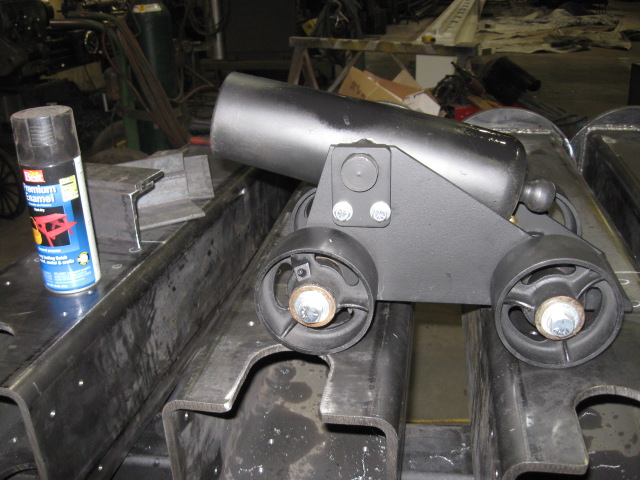

This was my first design . Functional but needs something .

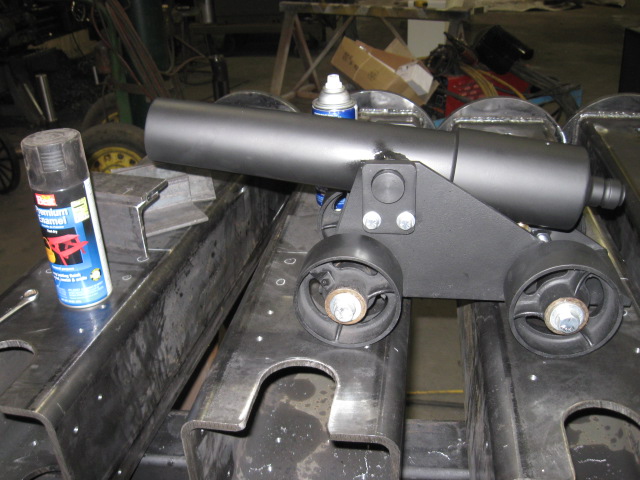

I like this version better . Similar to a Seacoast carriage . The process continues .

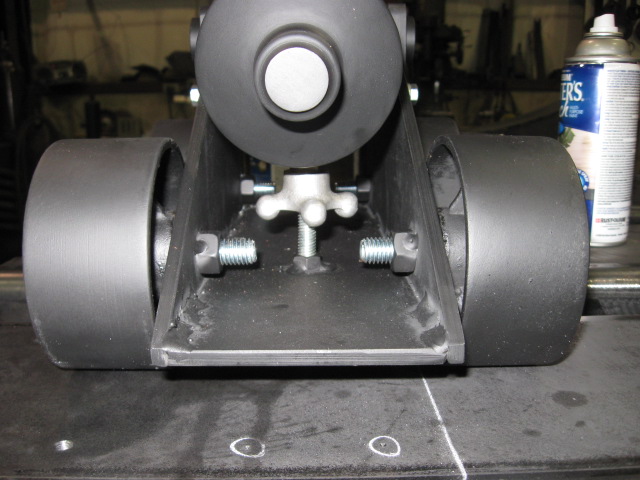

Elevator screw .

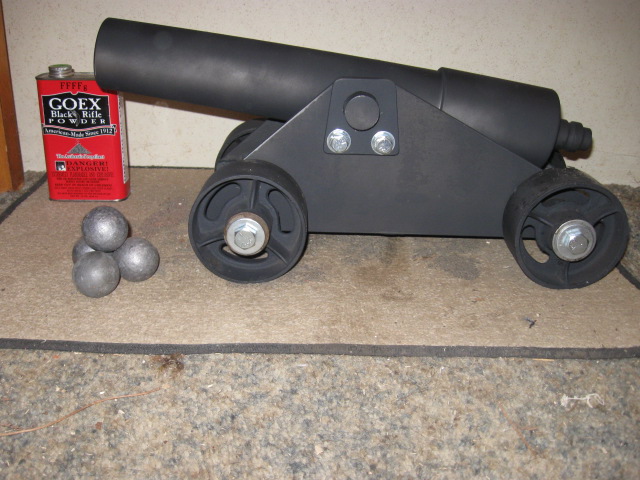

Looks about right on my 1861 GB Seige Howitzer too . Ed

dittles · « **Reply #1 on:** December 26, 2011, 07:31:42 AM »

I agree Ed. I like the second model better too. Looks good!

ranger56528 · « **Reply #2 on:** December 26, 2011, 07:42:25 AM »

I like em both but the 2nd looks abit better......

irishman · « **Reply #3 on:** December 26, 2011, 07:44:16 AM »

Nice work, Ed.

Michael

ranger56528 · « **Reply #4 on:** December 26, 2011, 10:14:34 AM »

Is that the 21" parrot in the 2nd pic on your new carriage?...

armorer77 · « **Reply #5 on:** December 26, 2011, 11:08:03 AM »

Both barrela are 21" GB Parrots .

armorer77 · « **Reply #6 on:** January 07, 2012, 07:59:44 AM »

Here is another carriage , for the 1841 & 1861 Seige Howitzers

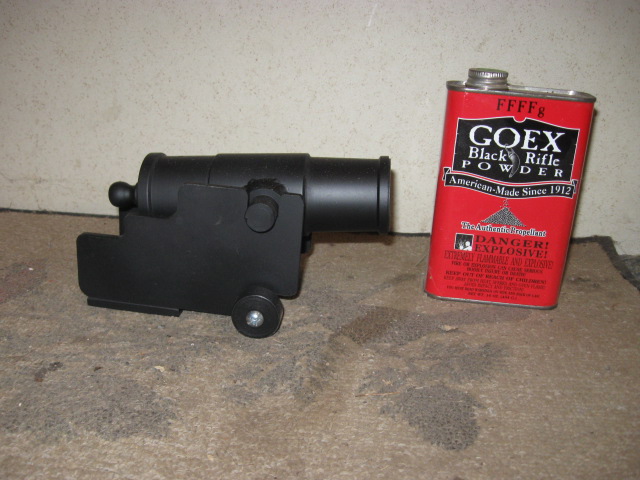

Side view .

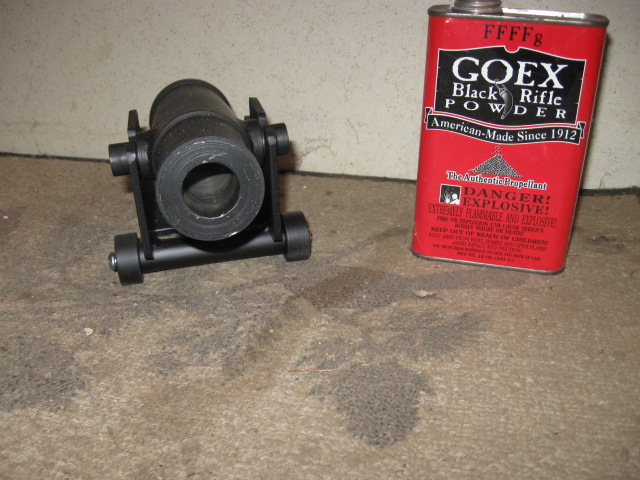

The Business end .

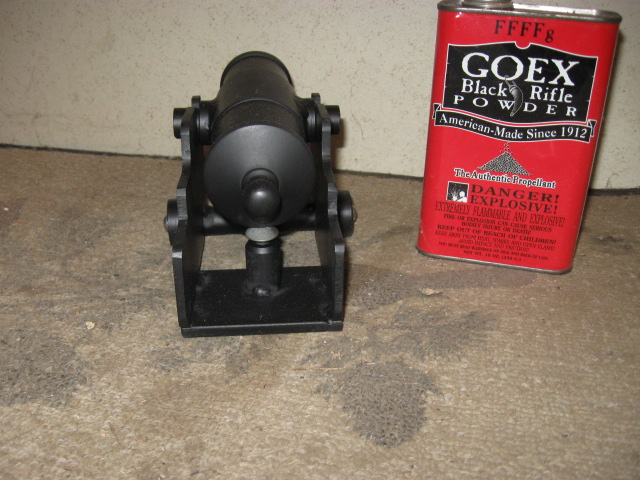

The breech . Ed
