Older quadrants
« on: January 31, 2008, 05:38:28 AM »
I didn't get a chance to post these when the other thread on quadrants was running, so here they are.  The two larger I am sure are gunner's quadrants, the smaller one, I'm not sure since it doesn't have a projection to go down the bore.  The small one is more like the modern quadrants that sit atop a flat place that's parallel to the bore.  I think the small one, marked "Jas Green Baltimore" is the oldest of the lot.  The wooden one is a standard-issue Civil War era item.  It has a round bullet and string in the compartment in the end, which are hung from the small brass screw on the arc, to indicate the antle.

Any opinions on whether the small one is really a gunner's quadrant, or is it for surveying or something?

The largest brass one is definitely a US gunner's quadrant but is so big I doubt it would be used in the field.  It may be for coast artillery.










Offline cannonmn

  • Trade Count: (1)
  • Senior Member
  • *****
  • Posts: 3345
Re: Older quadrants
« Reply #1 on: January 31, 2008, 10:28:23 AM »
I found out the smallest instrument shown has to date between 1833 and 1851, since that's when James Green worked in Baltimore.

This is an extract from an online database of instrument makers.

GREEN, JAMES 2 England; USA., 1808-96, MIM NIM OIM PHIM Surveyor's Compass = Infantry and Cavalry School, Fort Leavenworth, Kansas (1891); Barometer = USNM; Aneroid Barometer = USNM.  emigrated from London in 1833; succeeded in Baltimore by F.W. and R. King in 1851; dealt in European instruments.  London (1817-23); 72 Baltimore Street (1835-36); 15 Liberty Street (1840-41); 53 South Street (1842); all in Baltimore Md.; New York, N.Y. (1849-96); 175 Grand Street, New York, N.Y. (1868).  Smart 1; USNM; Middleton 1 and 4; D.J. Warner 6 and 10; RSW.

I still don't know for sure if it is gunner's quadrant or something else.

Offline cannonmn

  • Trade Count: (1)
  • Senior Member
  • *****
  • Posts: 3345
Re: Older quadrants
« Reply #2 on: January 31, 2008, 10:41:40 AM »
The instrument maker's directory lists "E and GW Blunt," maker of the large brass quadrant, working in New York from 1826-1866.

Offline Josco

  • Trade Count: (0)
  • Member
  • *
  • Posts: 57
Re: Older quadrants
« Reply #3 on: February 05, 2008, 02:55:49 PM »
This has been in our family for years. Would anyone know if it's a Gunners Quadrant?




Offline KABAR2

  • Trade Count: (1)
  • Senior Member
  • *****
  • Posts: 2830
Re: Older quadrants
« Reply #4 on: February 05, 2008, 04:08:56 PM »
Josco,

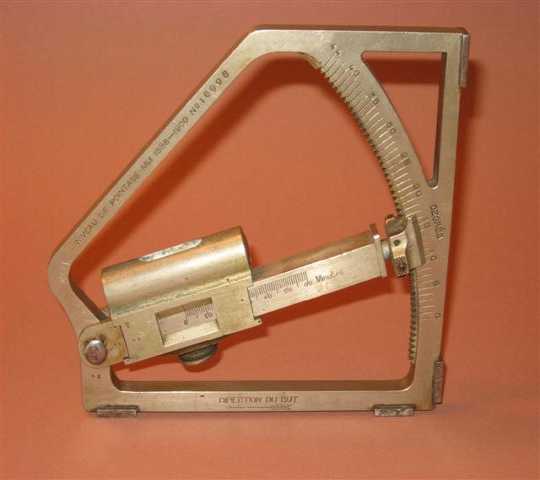

I believe you have a World War One vintage French Quadrant it may be for their 75mm field gun.

I have parts form one of the same type but am missing the level and part of the arm.

Allen <><
Mr president I do not cling to either my gun or my Bible.... my gun is holstered on my side so I may carry my Bible and quote from it!

Sed tamen sal petrae LURO VOPO CAN UTRIET sulphuris; et sic facies tonituum et coruscationem si scias artficium

Offline cannonmn

  • Trade Count: (1)
  • Senior Member
  • *****
  • Posts: 3345
Re: Older quadrants
« Reply #5 on: February 05, 2008, 04:11:06 PM »

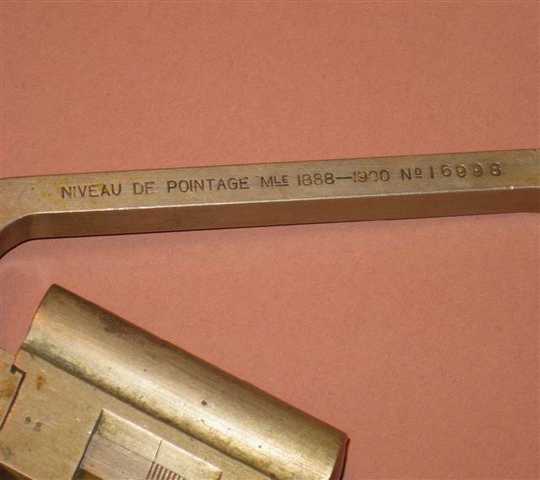

Yes, French gunner's quadrant M1888.  It looks like the US version used up thru WWII was copied from this one.

Offline Josco

  • Trade Count: (0)
  • Member
  • *
  • Posts: 57
Re: Older quadrants
« Reply #6 on: February 05, 2008, 04:23:46 PM »
Gentlemen,

Thanks for the info. Would you know what material they were made from? It's silver in color
and very heavy for it's size.

   Joe Scope

Offline cannonmn

  • Trade Count: (1)
  • Senior Member
  • *****
  • Posts: 3345
Re: Older quadrants
« Reply #7 on: February 05, 2008, 10:13:22 PM »
Material, I don't know why the silver color unless it is or was plated with tin, since it looks like brass to me.  The US ones are usually brass.  The four small "feet" that rest on the designated flat spot on the gun are usually made of steel, since they have to stay flat despite abuse in the field, and brass is too soft for that.
