Need a Bolt for the Stock
« on: July 09, 2008, 02:40:31 PM »
Need to find out what size the bolt that holds the stock on is or where I can get one.  Any help would be appreciated.

Thanks
Logged

Offline Nick Allen

  • Trade Count: (5)
  • Member
  • *
  • Posts: 85
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #1 on: July 09, 2008, 03:02:34 PM »
The thread size is 3/8"-24 tpi. As for length, I think 1 1/4" will do it. Lowes or Home Depot will have one. It is simply a HHCS ( hex head cap screw).


Nick
Logged

Offline Westtexan

  • Trade Count: (5)
  • Member
  • *
  • Posts: 25
Re: Need a Bolt for the Stock
« Reply #2 on: July 09, 2008, 03:04:15 PM »
Appreciate It!!!
Logged

Offline canon6

  • GBO Supporter
  • Trade Count: (119)
  • Senior Member
  • *****
  • Posts: 1508
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #3 on: July 09, 2008, 03:14:35 PM »

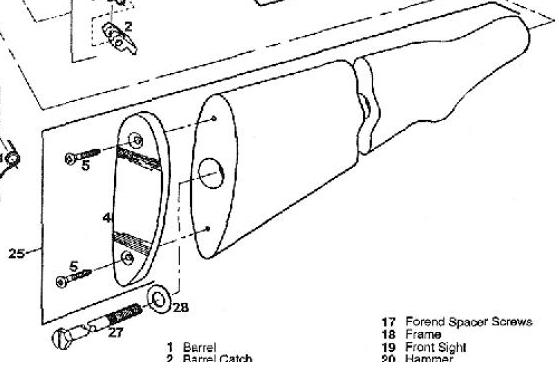

The stock bolt as listed in the FAQ's is indeed a 3/8 -24 but is 4 inches long.hth  Doug
Logged
a armed man is his own master

Offline GPR125

  • GBO Supporter
  • Trade Count: (1)
  • Member
  • *****
  • Posts: 87
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #4 on: July 09, 2008, 04:35:42 PM »
I picked up a couple from our local Mercantile farm store for about 60 cents apiece.  They were plated, so should be more rust resistant than the OEM.   Wish I'd have paid more attention to the FAQ about how to reinstall as I cross=threaded the original bolt.   Once I followed the instructions, it was simple.   Just natures way of correcting the grading curve..... They even had S/S and hex wrench versions, but that seemed an unwarranted expense.
Logged
Will that bow kill an elk?     Sure.....but arrows are much more effective.

Offline dpe.ahoy

  • GBO Supporter
  • Trade Count: (7)
  • Senior Member
  • *****
  • Posts: 3363
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #5 on: July 09, 2008, 05:00:01 PM »
I've got a plastic stock that is a real bear to try and get the socket off when I tighten it down.  One of the hex heads would help that out alot.
DP.
Logged
RIP Oct 27, 2017

Handi's:22Shot, 22LR, 2-22Mag, 22Hornet, 5-223, 2-357Max, 44 mag, 2-45LC, 7-30 Waters, 7mm-08, 280, 25-06, 30-30, 30-30AI, 444Marlin, 45-70, AND 2-38-55s, 158 Topper 22 Hornet/20ga. combo;  Levers-Marlins:Two 357's, 44 mag, 4-30-30s, RC-Glenfields 36G-30A & XLR, 3-35 Rem, M-375, 2-444P's, 444SS, 308 MX, 338Marlin MXLR, 38-55 CB, 45-70 GS, XS7 22-250 and 7mm08;  BLR's:7mm08, 358Win;  Rossi: 3-357mag, 44mag, 2-454 Casull; Winchesters: 7-30 Waters, 45Colt Trapper; Bolt actions, too many;  22's, way too many.  Who says it's an addiction?

Offline petemi

  • GBO Supporter
  • Trade Count: (73)
  • Senior Member
  • *****
  • Posts: 7386
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #6 on: July 10, 2008, 02:44:48 AM »
Yeah, it's loads of fun when the socket gets stuck down in there and keeps pulling off the extension!  I don't know which is more entertaining, that or the Huntsman breech plug wrench.  A little design improvement could go a long way.
Logged
Keep both eyes open and make the first shot good.
The growing Handi/Sportster/Pardner/Topper Family:  .22 WMR, .22-250. 223, Two Superlight 7mm-08s and one .243, .30-30,  .308, 32-20, 18 inch .356/.358 Win., Two 16.5 inch .357 Max., 18 inch 38-55 BC Carbine, 16.5 inch .445 Super Mag., .45LC, 16.5 and 22 inch .45-70s, .50 Huntsman SS, .410, 20 ga., 12 ga., 20 ga. Pardner Pump, Versa-Pack .410 - .22
[size=7.4 pt]PLEASE DONATE TO THE GBO SERVER FUND  We're closer to the goal but not there yet, we can still use more donations, thanks

http://www.gboreloaded.com/forums/index.php/topic,191112.msg1098959491.html#msg1098959491

Offline canon6

  • GBO Supporter
  • Trade Count: (119)
  • Senior Member
  • *****
  • Posts: 1508
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #7 on: July 10, 2008, 03:05:02 AM »
DP,petemi , been there done that.Lube(petroleum jelly) the exterior of the socket.AS I READ WHAT I JUST TYPED I REALIZE HOW VULNERABLE I AM TO THE RESIDENT JOKERS  BUT IT HAS WORKED FOR ME        Doug
Logged
a armed man is his own master

Offline petemi

  • GBO Supporter
  • Trade Count: (73)
  • Senior Member
  • *****
  • Posts: 7386
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #8 on: July 10, 2008, 03:28:50 AM »
Good idea!  I wonder if just a little plain old gun oil would work or maybe reel lube?
Logged
Keep both eyes open and make the first shot good.
The growing Handi/Sportster/Pardner/Topper Family:  .22 WMR, .22-250. 223, Two Superlight 7mm-08s and one .243, .30-30,  .308, 32-20, 18 inch .356/.358 Win., Two 16.5 inch .357 Max., 18 inch 38-55 BC Carbine, 16.5 inch .445 Super Mag., .45LC, 16.5 and 22 inch .45-70s, .50 Huntsman SS, .410, 20 ga., 12 ga., 20 ga. Pardner Pump, Versa-Pack .410 - .22
[size=7.4 pt]PLEASE DONATE TO THE GBO SERVER FUND  We're closer to the goal but not there yet, we can still use more donations, thanks

http://www.gboreloaded.com/forums/index.php/topic,191112.msg1098959491.html#msg1098959491

Offline quickdtoo

  • Global Moderator
  • Trade Count: (149)
  • Senior Member
  • *****
  • Posts: 43301
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #9 on: July 10, 2008, 04:40:15 AM »
An old mechanic's trick(thanks Grandpa!!) is to place a piece of plastic bag over the socket, then push the extension into the socket so the plastic creates a tight fit, it takes some serious pressure to remove it if the plastic is thick enough. ;) If you leave enough plastic bag when you trim it, it helps center the socket in the bolt hole on wood stocks too.

Tim
Logged
"Always do right, this will gratify some and astonish the rest" -  Mark Twain

Offline petemi

  • GBO Supporter
  • Trade Count: (73)
  • Senior Member
  • *****
  • Posts: 7386
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #10 on: July 10, 2008, 05:43:53 AM »
Now I know where you get it from!
Logged
Keep both eyes open and make the first shot good.
The growing Handi/Sportster/Pardner/Topper Family:  .22 WMR, .22-250. 223, Two Superlight 7mm-08s and one .243, .30-30,  .308, 32-20, 18 inch .356/.358 Win., Two 16.5 inch .357 Max., 18 inch 38-55 BC Carbine, 16.5 inch .445 Super Mag., .45LC, 16.5 and 22 inch .45-70s, .50 Huntsman SS, .410, 20 ga., 12 ga., 20 ga. Pardner Pump, Versa-Pack .410 - .22
[size=7.4 pt]PLEASE DONATE TO THE GBO SERVER FUND  We're closer to the goal but not there yet, we can still use more donations, thanks

http://www.gboreloaded.com/forums/index.php/topic,191112.msg1098959491.html#msg1098959491

Offline quickdtoo

  • Global Moderator
  • Trade Count: (149)
  • Senior Member
  • *****
  • Posts: 43301
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #11 on: July 10, 2008, 12:42:22 PM »
It's in the genes!! ;D
Logged
"Always do right, this will gratify some and astonish the rest" -  Mark Twain

Offline dpe.ahoy

  • GBO Supporter
  • Trade Count: (7)
  • Senior Member
  • *****
  • Posts: 3363
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #12 on: July 10, 2008, 04:16:54 PM »
Yah, but I, oh man.  Ok Doug.  I'll let you go this time. ;)    DP.
Logged
RIP Oct 27, 2017

Handi's:22Shot, 22LR, 2-22Mag, 22Hornet, 5-223, 2-357Max, 44 mag, 2-45LC, 7-30 Waters, 7mm-08, 280, 25-06, 30-30, 30-30AI, 444Marlin, 45-70, AND 2-38-55s, 158 Topper 22 Hornet/20ga. combo;  Levers-Marlins:Two 357's, 44 mag, 4-30-30s, RC-Glenfields 36G-30A & XLR, 3-35 Rem, M-375, 2-444P's, 444SS, 308 MX, 338Marlin MXLR, 38-55 CB, 45-70 GS, XS7 22-250 and 7mm08;  BLR's:7mm08, 358Win;  Rossi: 3-357mag, 44mag, 2-454 Casull; Winchesters: 7-30 Waters, 45Colt Trapper; Bolt actions, too many;  22's, way too many.  Who says it's an addiction?

Offline OR-E-Gun Bill

  • GBO Supporter
  • Trade Count: (18)
  • A Real Regular
  • *****
  • Posts: 907
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #13 on: July 10, 2008, 05:30:05 PM »
Having never had to remove a stock from a Handi rifle; a question.
If the recess is so tight that a socket gets stuck, does the flat washer stay in place or will it fall out when the bolt is removed?



Bill
Logged

Offline quickdtoo

  • Global Moderator
  • Trade Count: (149)
  • Senior Member
  • *****
  • Posts: 43301
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #14 on: July 10, 2008, 05:33:28 PM »
The stuck socket happens on the synthetic stock, not a problem on wood stocks.  ;) Not all stocks have washers in them, some do, some don't. :-\ I use a metric washer, they have a small OD, but a 10mm hole.

Tim
Logged
"Always do right, this will gratify some and astonish the rest" -  Mark Twain

Offline Tencubed

  • Trade Count: (0)
  • Contributor
  • ***
  • Posts: 265
  • Gender: Male
Re: Need a Bolt for the Stock
« Reply #15 on: July 10, 2008, 07:35:46 PM »
Anyone hailed down the Snap On van and picked up a thinwall socket for this job?

Mike
Logged
NRA Benefactor Life Member
Why do I carry a gun?  Because a Cop's too heavy.
Oldest rifle I shoot - 1854 Sharps 50-70

Offline kody

  • Trade Count: (26)
  • A Real Regular
  • ****
  • Posts: 564
Re: Need a Bolt for the Stock
« Reply #16 on: July 30, 2008, 07:25:31 AM »
A cheap 3/8" X 6 point socket, ground down a very small amount, or a hole saw [check the fit, or possibly a barrel-shaped rotary file [check that fit too] can relieve socket-wrench loss.  KODY
Logged

Offline Slufoot

  • Trade Count: (21)
  • Senior Member
  • *****
  • Posts: 1004
Re: Need a Bolt for the Stock
« Reply #17 on: July 30, 2008, 03:57:07 PM »
I ordered some 3/8 - 24 X 4" socket head cap bolts (Allen Head) from McMaster Carr and they are the cats meow in the plastic stocks.
