Author Topic: 9" Dahlgren in .75 cal (Read 2753 times)

Double D · « **Reply #30 on:** May 27, 2010, 02:19:15 PM »

I plan to try a couple of variations , but I can't start cutting until Tuesday . Armorer77

We'll wait....impatiently.

little seacoast · « **Reply #31 on:** May 27, 2010, 02:39:28 PM »

Perhaps this is a better shot of the profile @ the muzzle- shot at a 90 degree angle rather than oblique.

JeffG · « **Reply #32 on:** May 28, 2010, 04:49:33 PM »

What's wrong with that?

Double D · « **Reply #33 on:** May 28, 2010, 05:21:26 PM »

Nothing wrong, just exploring the different interpretations of Muzzle swells on Dahlgren's.

JeffG · « **Reply #34 on:** May 30, 2010, 07:09:54 AM »

No expert here, but I think it depends what gun you are scaling. Am I wrong?

armorer77 · « **Reply #35 on:** June 02, 2010, 09:53:01 AM »

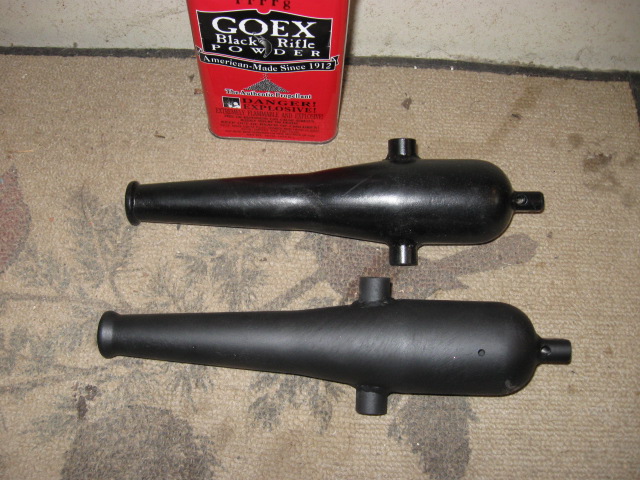

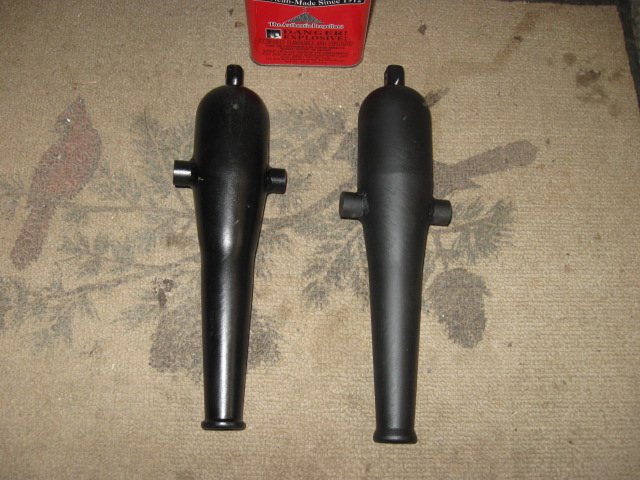

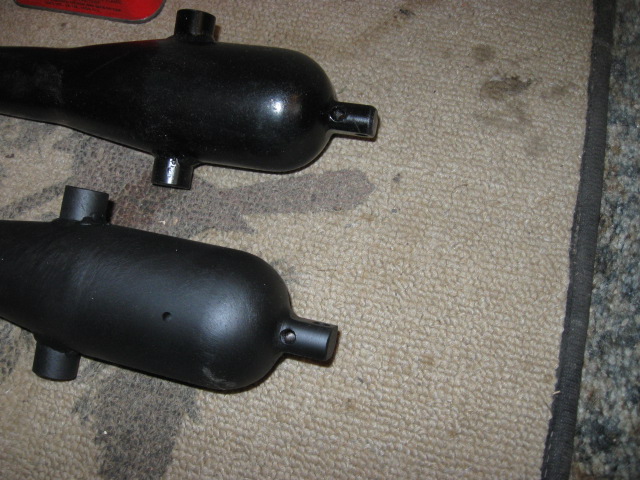

OK here we go , 1st & 2nd tries ,

The newer version is in the flat , proportions are better .

I changed the radius from .062" to .187"

Changed the muzzle flare from 45 deg. to 20 deg.
To use your analogy about eye candy Double D , I still think her butt looks big . Armorer77

gungoboom · « **Reply #36 on:** June 02, 2010, 11:02:02 AM »

That second version looks sweet!!! Great Job!

little seacoast · « **Reply #37 on:** June 02, 2010, 01:28:15 PM »

Really nice gun you have there sir. The proportions do look better and trunnion placement too. Congratulations, may you sell many!

JeffG · « **Reply #38 on:** June 02, 2010, 02:48:32 PM »

Very nice Ed, the second version is a winner!!

GGaskill · « **Reply #39 on:** June 02, 2010, 03:23:38 PM »

It looks to me that the length of the largest diameter is still a little too long compared to this:

I think you need to radius the transition from sharp taper to cylinder more than you did.

BoomLover · « **Reply #40 on:** June 02, 2010, 10:05:54 PM »

Ed, the second one is pretty darn nice! Good Job!

RocklockI · « **Reply #41 on:** June 04, 2010, 03:10:25 PM »

That is what it should look like ,;D Good work .
Gary
