Seacoast Cannon Model
« on: September 29, 2010, 10:38:50 PM »

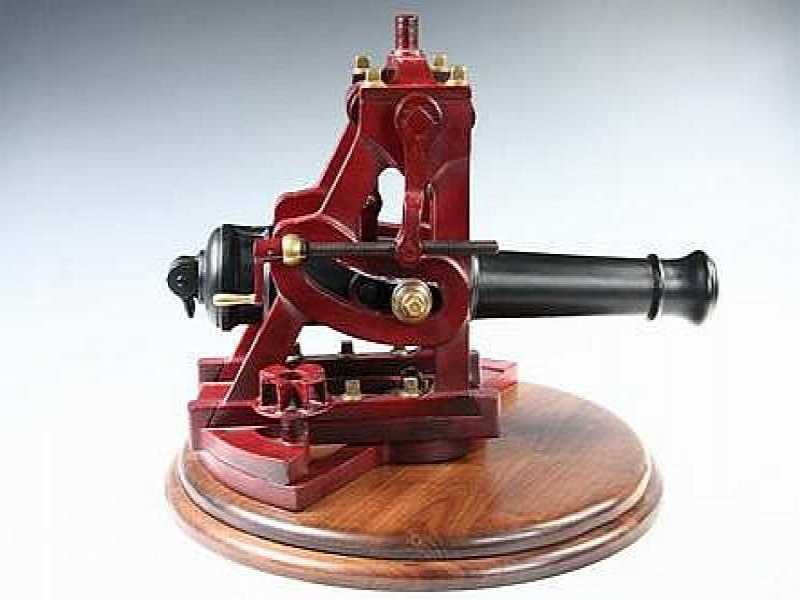

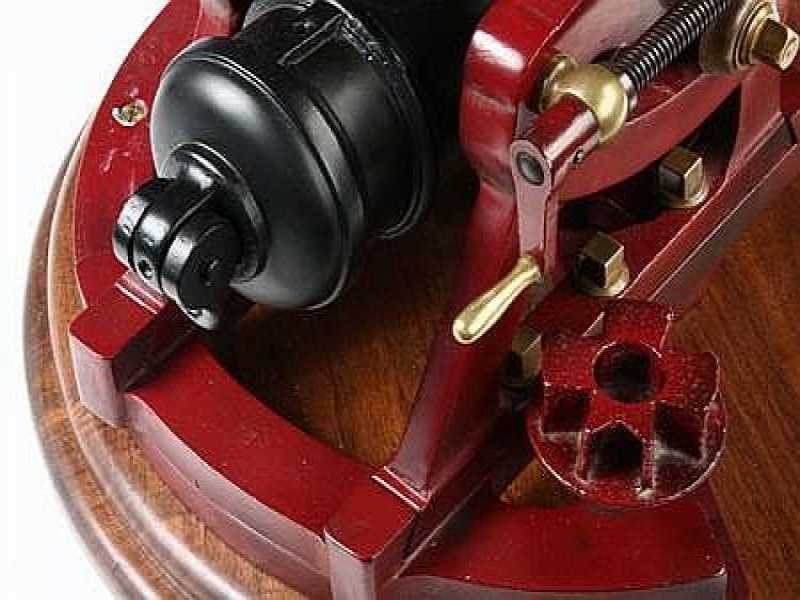

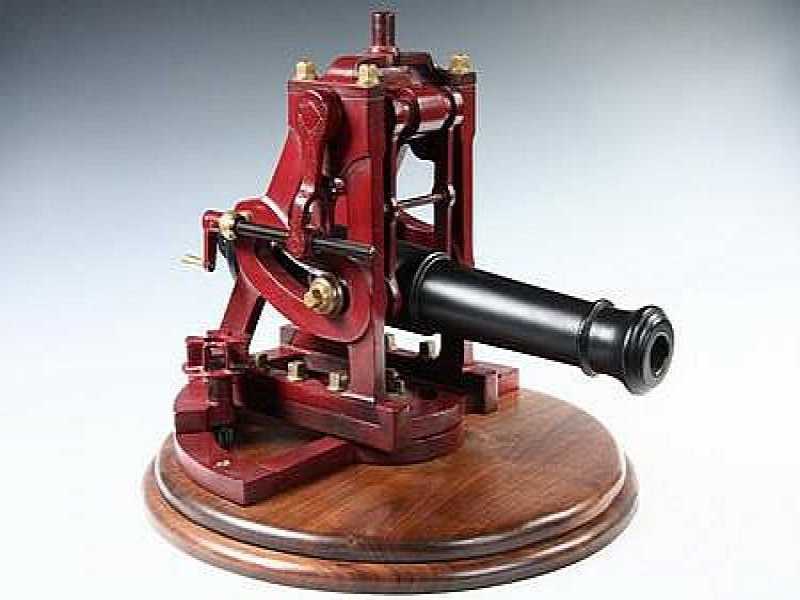

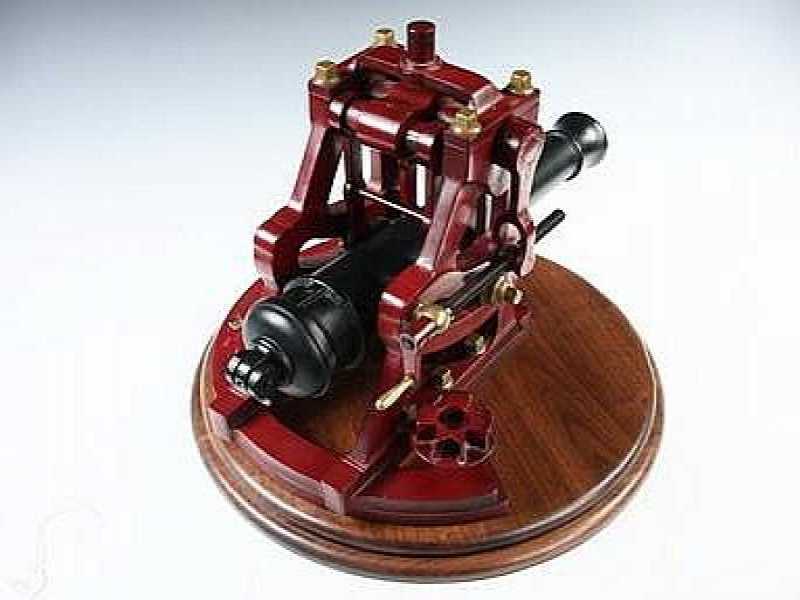

The photos of this model come from Christie's, and I saved them a few months ago, but I can't remember the appraised value that the gun was given. This is the description that was given of the cannon: MODEL CANNON - English circa 1890 iron working model of an articulated seacoast fortification 24-pounder cannon with turned iron 21'' long barrel and 3-4'' bore.

This is obviously what is called a depression cannon that would be mounted on a high vantage point overlooking the water, because the carriage design is meant to fire the gun either level, or pointing downward. I've never seen a historic mount like this before, but there are a lot of things I haven't seen; I wonder if it's based on real plans, or relies more heavily on the maker's imagination?








Logged
RIP John. While on vacation July 4th 2013 in northern Wisconsin, he was ATVing with family and pulled ahead of everyone and took off at break-neck speed without a helmet. He lost control.....hit a tree....and the tree won.  He died instantly.

The one thing that you can almost always rely on research leading to, is more research.

Offline Cat Whisperer

  • Trade Count: (2)
  • Senior Member
  • *****
  • Posts: 7493
  • Gender: Male
  • Pulaski Coehorn Works
Re: Seacoast Cannon Model
« Reply #1 on: September 30, 2010, 01:33:39 AM »
That would make a fun squirrel gun for the edge of my deck next to the chestnut trees.   ;D

But I'd need positive elevation as well.
Logged
Tim K                 www.GBOCANNONS.COM
Cat Whisperer
Chief of Smoke, Pulaski Coehorn Works & Winery
U.S.Army Retired
N 37.05224  W 80.78133 (front door +/- 15 feet)

Offline Cat Whisperer

  • Trade Count: (2)
  • Senior Member
  • *****
  • Posts: 7493
  • Gender: Male
  • Pulaski Coehorn Works
Re: Seacoast Cannon Model
« Reply #2 on: September 30, 2010, 01:36:07 AM »
I wonder what went on top?
Logged
Tim K                 www.GBOCANNONS.COM
Cat Whisperer
Chief of Smoke, Pulaski Coehorn Works & Winery
U.S.Army Retired
N 37.05224  W 80.78133 (front door +/- 15 feet)

Offline KABAR2

  • Trade Count: (1)
  • Senior Member
  • *****
  • Posts: 2830
Re: Seacoast Cannon Model
« Reply #3 on: September 30, 2010, 03:26:14 AM »
Quote from: Cat Whisperer on September 30, 2010, 01:36:07 AM
I wonder what went on top?

Probably the pin on top went it to a bracket on the ceiling of the Casement acting as a swivel point

since recoil is captured it would keep the mount steady and from wanting to fall backwards.
Logged
Mr president I do not cling to either my gun or my Bible.... my gun is holstered on my side so I may carry my Bible and quote from it!

Sed tamen sal petrae LURO VOPO CAN UTRIET sulphuris; et sic facies tonituum et coruscationem si scias artficium

Offline Artilleryman

  • Moderator
  • Trade Count: (0)
  • Senior Member
  • *****
  • Posts: 1378
Re: Seacoast Cannon Model
« Reply #4 on: September 30, 2010, 12:19:52 PM »
Anyone have any references for this carriage?  It is an interesting design.
Logged
Norm Gibson, 1st SC Vol., ACWSA

Offline GGaskill

  • Moderator
  • Trade Count: (2)
  • Senior Member
  • *****
  • Posts: 5668
  • Gender: Male
Re: Seacoast Cannon Model
« Reply #5 on: September 30, 2010, 01:23:09 PM »
Any idea of how the recoil was handled?
Logged
GG
“If you're not a liberal at 20, you have no heart; if you're not a conservative at 40, you have no brain.”--Winston Churchill

Offline dan610324

  • Trade Count: (0)
  • Senior Member
  • *****
  • Posts: 2413
  • Gender: Male
  • bronze cannons and copper stills ;-))
    • dont have
Re: Seacoast Cannon Model
« Reply #6 on: September 30, 2010, 02:19:17 PM »
isnt it just sliding in that radius shaped track ??
the elevation is set by cranking the handle that will move the arm  thats attached with the axle at the top
so the one and only reason for that radius must be to handle the recoil
Logged
Dan Pettersson
a swedish cannon maniac
interested in early bronze guns

better safe than sorry

Offline jeeper1

  • Trade Count: (0)
  • A Real Regular
  • ****
  • Posts: 662
  • Gender: Male
Re: Seacoast Cannon Model
« Reply #7 on: September 30, 2010, 07:36:49 PM »
Quote
isnt it just sliding in that radius shaped track ??
the elevation is set by cranking the handle that will move the arm  thats attached with the axle at the top
so the one and only reason for that radius must be to handle the recoil

I agree.
Logged
I may not be completely sane, but at least I don't think I have the power to influence the weather.

Offline Cannoneer

  • GBO Supporter
  • Trade Count: (0)
  • Senior Member
  • *****
  • Posts: 3950
Re: Seacoast Cannon Model
« Reply #8 on: September 30, 2010, 10:17:04 PM »
Logged
RIP John. While on vacation July 4th 2013 in northern Wisconsin, he was ATVing with family and pulled ahead of everyone and took off at break-neck speed without a helmet. He lost control.....hit a tree....and the tree won.  He died instantly.

The one thing that you can almost always rely on research leading to, is more research.

Offline Cat Whisperer

  • Trade Count: (2)
  • Senior Member
  • *****
  • Posts: 7493
  • Gender: Male
  • Pulaski Coehorn Works
Re: Seacoast Cannon Model
« Reply #9 on: October 01, 2010, 01:45:09 AM »
THat works for me!

 ;D ;D ;D ;D ;D ;D ;D ;D ;D ;D ;D ;D ;D ;D ;D ;D ;D
Logged
Tim K                 www.GBOCANNONS.COM
Cat Whisperer
Chief of Smoke, Pulaski Coehorn Works & Winery
U.S.Army Retired
N 37.05224  W 80.78133 (front door +/- 15 feet)

Offline Cannoneer

  • GBO Supporter
  • Trade Count: (0)
  • Senior Member
  • *****
  • Posts: 3950
Re: Seacoast Cannon Model
« Reply #10 on: October 02, 2010, 08:23:04 AM »
But seriously folks! I think that the projection on top is simply the pivot that the rocker arm (sorry boys, I was a bolt-head) is attached to, which in turn supports the cradle that holds the barrel, allowing it swing back and forth.
Logged
RIP John. While on vacation July 4th 2013 in northern Wisconsin, he was ATVing with family and pulled ahead of everyone and took off at break-neck speed without a helmet. He lost control.....hit a tree....and the tree won.  He died instantly.

The one thing that you can almost always rely on research leading to, is more research.

Offline 1Southpaw

  • GBO Supporter
  • Trade Count: (0)
  • A Real Regular
  • *****
  • Posts: 642
  • Gender: Male
  • Let Freedom ring
It appears to have
« Reply #11 on: October 02, 2010, 05:48:32 PM »
Parallel trunion arms . Recoil would have been on the arc seen on the side ?
Logged
Left Handed people are in their right mind .

Offline b. snipes

  • Trade Count: (0)
  • Member
  • *
  • Posts: 23
Re: Seacoast Cannon Model
« Reply #12 on: October 04, 2010, 07:53:44 PM »
The bolt & washer on the trunion look like a way to dampen the recoil, note the scared zone on top of the arc cut. So elaborate. Must have been a costly toy even when it was made.
