Author Topic: Winger Ed's Winter Project 2012  (Read 837 times)

0 Members and 1 Guest are viewing this topic.

Offline Winger Ed.

  • Trade Count: (0)
  • Member
  • *
  • Posts: 80
  • Gender: Male
Winger Ed's Winter Project 2012
« on: May 06, 2012, 07:27:05 PM »

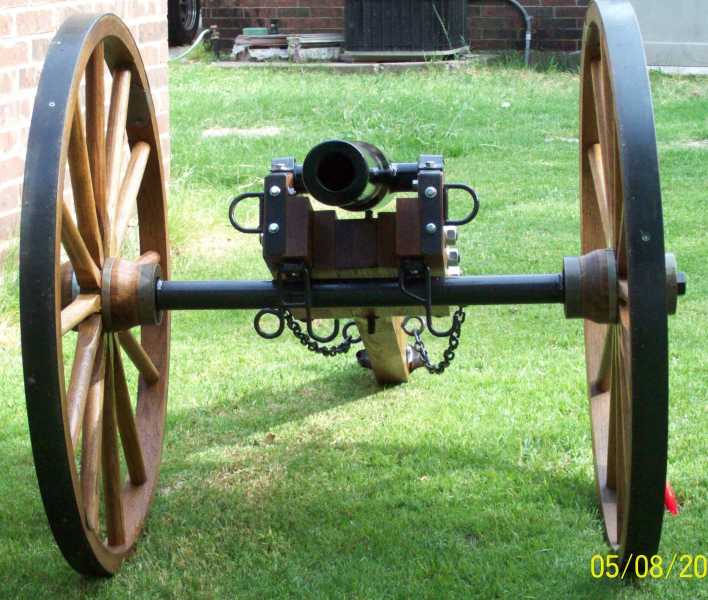

About 12 years ago I bought this 2" bore cannon, in need of a full overhaul.
The barrel & hardware needed to be repainted, and the carriage & wheels were in really rough shape.

I finally ordered the wood, the wheels, a few odds & ends, and got it finished.
Well, almost finished. I'm not really happy with the trunnion straps, and I need to enclose the Steel axle
in a wooden 'box' to make it look a little more historically correct.
Its done with Amish wheels and white oak lumber from a mill in the Carolinas.







The pictures don't really do justice to the finish on the wood and the wheels.
After sanding, its stained with Minwax provincial, then rubbed several times with teak oil-
and it came out really nice looking.









Logged
"Gone are the days of wooden ships, and Iron men.
I doubt we shall ever see their likes again".
Unknown US Coast Guard Commander on the upper US East Coast.  Circa 1920

In our modern & enlightened times:
The only thing the Meek will inherit- is a Berqa.

Offline flagman1776

  • GBO Supporter
  • Trade Count: (3)
  • A Real Regular
  • *****
  • Posts: 795
  • Gender: Male
Re: Winger Ed's Winter Project 2012
« Reply #1 on: May 07, 2012, 04:26:49 AM »
 :)

Logged

Offline Ex 49'er

  • GBO Supporter
  • Trade Count: (8)
  • Senior Member
  • *****
  • Posts: 1975
  • Gender: Male
Re: Winger Ed's Winter Project 2012
« Reply #2 on: May 07, 2012, 05:13:13 AM »
Wowee!!! That sure is a beautiful looking gun. I really like the look of the barrel. Realllll smoooooth!

Congrats on your rebuild!!
Logged
When you're walking on eggs; don't hop!!

Offline Cat Whisperer

  • Trade Count: (2)
  • Senior Member
  • *****
  • Posts: 7493
  • Gender: Male
  • Pulaski Coehorn Works
Re: Winger Ed's Winter Project 2012
« Reply #3 on: May 07, 2012, 06:59:55 AM »
and Smoke & Flame?
Logged
Tim K                 www.GBOCANNONS.COM
Cat Whisperer
Chief of Smoke, Pulaski Coehorn Works & Winery
U.S.Army Retired
N 37.05224  W 80.78133 (front door +/- 15 feet)

Offline Cannoneer

  • GBO Supporter
  • Trade Count: (0)
  • Senior Member
  • *****
  • Posts: 3950
Re: Winger Ed's Winter Project 2012
« Reply #4 on: May 07, 2012, 09:27:55 AM »
Winger Ed,

I also think that you did a great job refurbishing the barrel and rebuilding the carriage, so I hope you don't mind one bit of constructive criticism (I wouldn't even mention it unless it was something that could be easily remedied). The two pieces of hardware on top and near the end of the trail are called pointing rings (large and small), and their correct positions are reversed, they're also backwards. A wood pole called a hand spike goes through the rings so that it is angled upwards pointing away from the trail, and it's used by artillerymen to traverse the piece left or right when aiming.
Logged
RIP John. While on vacation July 4th 2013 in northern Wisconsin, he was ATVing with family and pulled ahead of everyone and took off at break-neck speed without a helmet. He lost control.....hit a tree....and the tree won.  He died instantly.

The one thing that you can almost always rely on research leading to, is more research.

Offline jamesfrom180

  • Trade Count: (0)
  • Avid Poster
  • **
  • Posts: 192
  • Gender: Male
Re: Winger Ed's Winter Project 2012
« Reply #5 on: May 07, 2012, 09:33:12 AM »
Maybe he wanted to use it as a sighting post!? ;) The work is so nice that I would take it.
Logged
AMMA Bosslopper 1988

Offline Cannoneer

  • GBO Supporter
  • Trade Count: (0)
  • Senior Member
  • *****
  • Posts: 3950
Re: Winger Ed's Winter Project 2012
« Reply #6 on: May 07, 2012, 09:37:59 AM »
Oh, I'd take it too, in a heartbeat.
Logged
RIP John. While on vacation July 4th 2013 in northern Wisconsin, he was ATVing with family and pulled ahead of everyone and took off at break-neck speed without a helmet. He lost control.....hit a tree....and the tree won.  He died instantly.

The one thing that you can almost always rely on research leading to, is more research.

Offline The Jeff

  • Trade Count: (0)
  • Contributor
  • ***
  • Posts: 255
Re: Winger Ed's Winter Project 2012
« Reply #7 on: May 07, 2012, 10:58:57 AM »
Very nice!
Logged

Offline Winger Ed.

  • Trade Count: (0)
  • Member
  • *
  • Posts: 80
  • Gender: Male
Re: Winger Ed's Winter Project 2012
« Reply #8 on: May 11, 2012, 05:04:03 PM »
[quote The two pieces of hardware on top and near the end of the trail are called pointing rings (large and small), and their correct positions are reversed, they're also backwards.


Thanks everybody!

I'll fix the 2 pieces.
I put it back the way the original carriage was done....
but didn't have a clue as to what they are, or how they are supposed to be mounted.
Also, I'm not totally happy with the trunnion caps.
I've been scratching my head over whether to make new ones,
or put a piece of leather under the trunnions to tighten up the slack in them.

At work & home I'm busier than a cat in the sandbox right now, so no firing pictures for a bit.


Logged
"Gone are the days of wooden ships, and Iron men.
I doubt we shall ever see their likes again".
Unknown US Coast Guard Commander on the upper US East Coast.  Circa 1920

In our modern & enlightened times:
The only thing the Meek will inherit- is a Berqa.

Offline Winger Ed.

  • Trade Count: (0)
  • Member
  • *
  • Posts: 80
  • Gender: Male
Re: Winger Ed's Winter Project 2012
« Reply #9 on: May 11, 2012, 09:51:13 PM »
Quote from: Ex 49'er on May 07, 2012, 05:13:13 AM
Wowee!!! That sure is a beautiful looking gun. I really like the look of the barrel. Realllll smoooooth!
Thanks bro.
But be advised: You're working at altitude,,,,, and,,,,, without a net.
You've just complimented a 'Bubba barrel'.

*********
(The guy I got it from, who looked about 70, had recently retired, and moved to a community North of Dallas.
I answered a add in the paper,,,, went to his approx $1 million house-
that wasn't even old enough for the grass on the yard to be established.
But the concrete driveway was dried enough to support a new, 4 door, Mercedes-
wearing a paper Dealer license plate and also, a beautiful, Jaguar(sp) sedan.
At around 6 in the afternoon,,, he came out to meet me wearing a suit worth more than my truck.)
*********
 Anyway,,, the point I was getting to:
It doesen't matter if it was built by craftsmen who'd been welding for their 'day job'
35 years or more, using equipment that- when ya pulled the trigger or drew a arc with it-
all the lights in the city went dim,,,,,,,,, and they built it for the 'boss'........
Its still a 'bubba barrel', with a trailer hitch ball glued on the back..


In the future,, ya need to watch out.
If you're not careful, the villagers will come after you with torches and pitchforks--
just like they did the Frankenstien monster,,, (and me on several occasions.)
