Author Topic: How to turn a Bowling Ball  (Read 816 times)

0 Members and 1 Guest are viewing this topic.

Offline armorer77

  • GBO Sponsor
  • Trade Count: (8)
  • A Real Regular
  • ****
  • Posts: 541
  • Gender: Male
How to turn a Bowling Ball
« on: June 24, 2012, 05:47:38 AM »
Since this topic seems to be of interest or amusement I will post the rest of the pics .



The first question was how to hold it . The answer , install a draw bar .

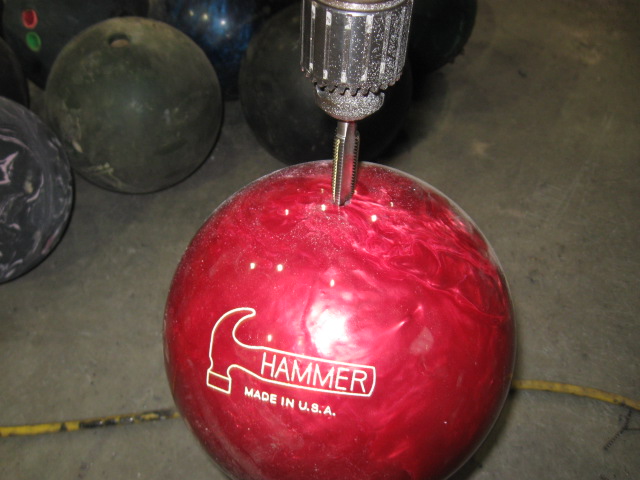

Frst , drill & tap for 1/2-13

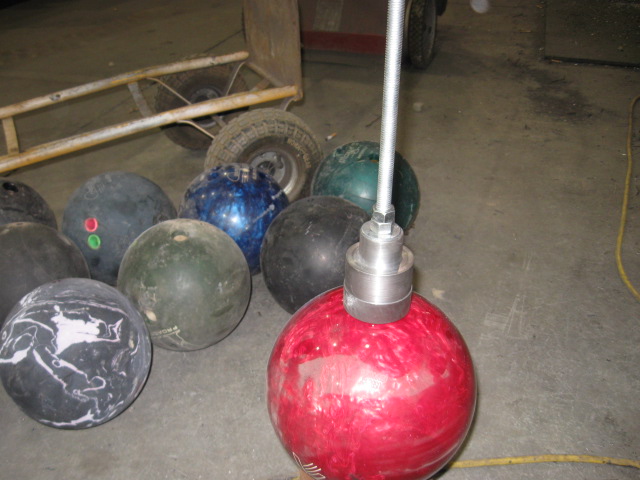

The draw bar with a centering collar ready to go . The rod reaches through the headstock and is retained with a big washer and nut .

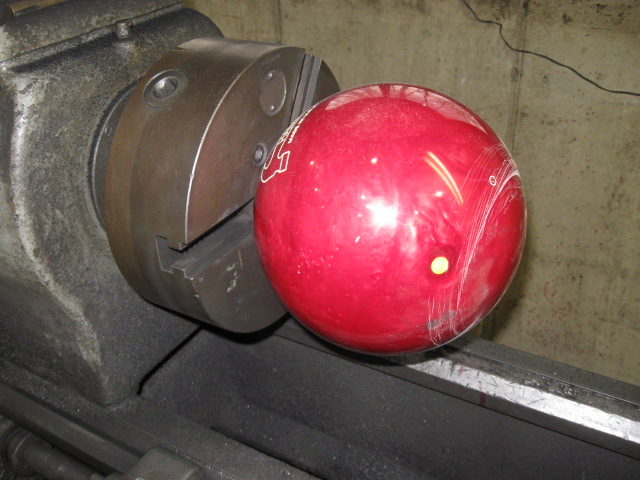

As you can see , the jaws are useless in this application .

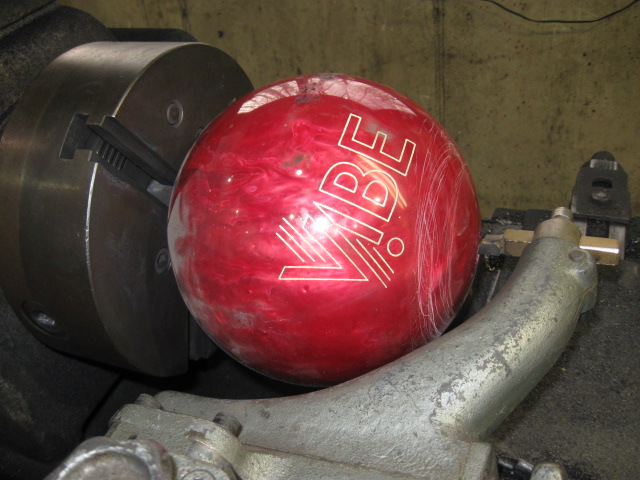

Ready for the first cut.

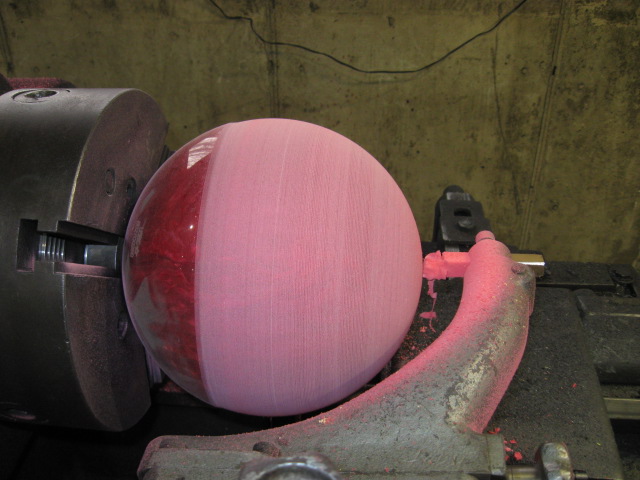

1st cut complete .



Drill & tap for the other side .

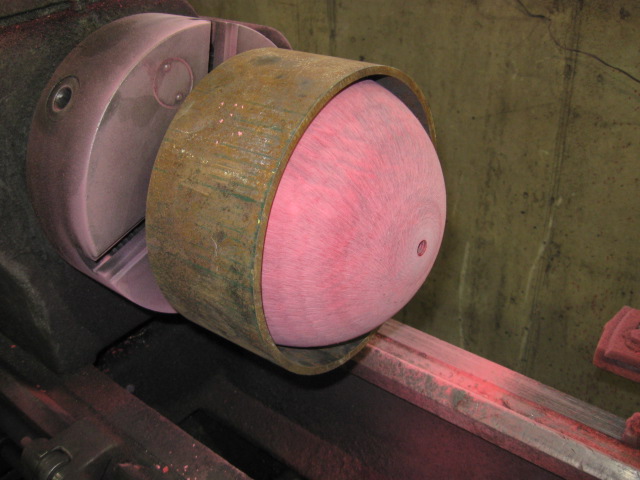

Passes guage , I did 11 balls in about 11 hours . Armorer77


Logged

Offline Zulu

  • Trade Count: (0)
  • Senior Member
  • *****
  • Posts: 2477
  • Honor is a gift a man gives himself.
    • Wood & Ironworks
Re: How to turn a Bowling Ball
« Reply #1 on: June 24, 2012, 09:52:59 AM »
armorer,
How did you know you were centered and straight on the first drill and tap?
Zulu
Logged
Zulu's website
www.jmelledge.com

Offline armorer77

  • GBO Sponsor
  • Trade Count: (8)
  • A Real Regular
  • ****
  • Posts: 541
  • Gender: Male
Re: How to turn a Bowling Ball
« Reply #2 on: June 24, 2012, 10:15:05 AM »
A good eye , and years of practice . Also the centering jig got me close enough . Ed
Logged

Offline Cannoneer

  • GBO Supporter
  • Trade Count: (0)
  • Senior Member
  • *****
  • Posts: 3950
Re: How to turn a Bowling Ball
« Reply #3 on: June 25, 2012, 08:05:41 AM »
Ed,
In recalling past threads where guys with BBM's reported losing balls, and considering the time and effort you're putting into reducing the size of these; do you plan on attaching any brightly colored plastic ribbons like some others have? It might cut down on a lot of loud cussing being heard out on the range.
Logged
RIP John. While on vacation July 4th 2013 in northern Wisconsin, he was ATVing with family and pulled ahead of everyone and took off at break-neck speed without a helmet. He lost control.....hit a tree....and the tree won.  He died instantly.

The one thing that you can almost always rely on research leading to, is more research.

Offline armorer77

  • GBO Sponsor
  • Trade Count: (8)
  • A Real Regular
  • ****
  • Posts: 541
  • Gender: Male
Re: How to turn a Bowling Ball
« Reply #4 on: June 25, 2012, 01:26:47 PM »
I don't know about tails , but a blaze orange paint job is in order .

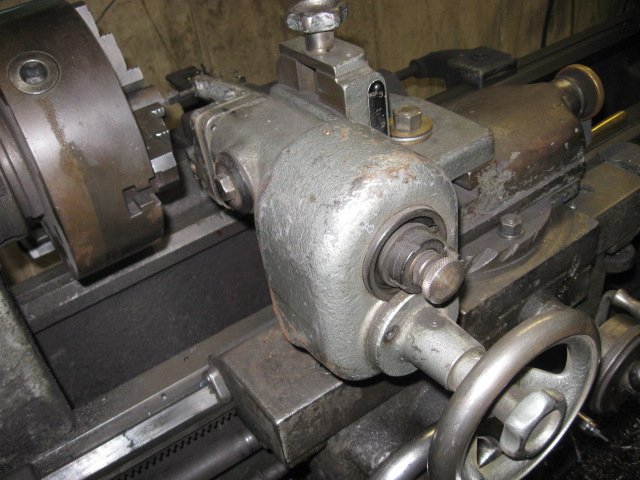

Now GOW , here the pictures of my radius cutter you wanted .

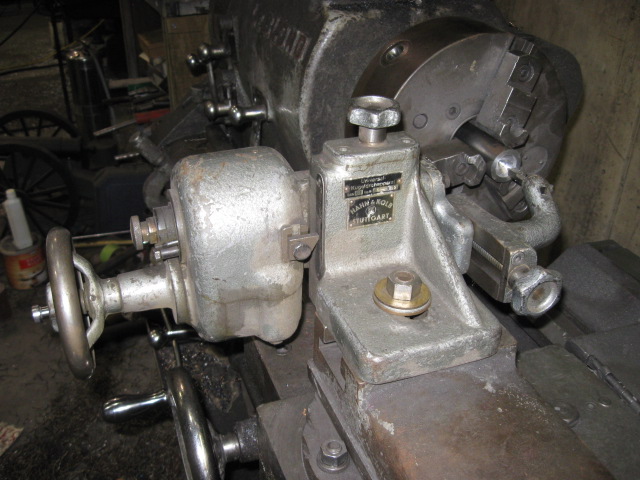

Here shown set up to cut a 1.23" ball mold . The tool is German , and so is the only manual available . Armorer77
Logged

Offline GGaskill

  • Moderator
  • Trade Count: (2)
  • Senior Member
  • *****
  • Posts: 5668
  • Gender: Male
Re: How to turn a Bowling Ball
« Reply #5 on: June 25, 2012, 01:37:25 PM »
Now THAT is a radius cutter!
Logged
GG
“If you're not a liberal at 20, you have no heart; if you're not a conservative at 40, you have no brain.”--Winston Churchill

Offline Zulu

  • Trade Count: (0)
  • Senior Member
  • *****
  • Posts: 2477
  • Honor is a gift a man gives himself.
    • Wood & Ironworks
Re: How to turn a Bowling Ball
« Reply #6 on: June 25, 2012, 01:54:38 PM »
I wish I knew what I was looking at. ??? ??? ??? ??? ???
Zulu
Logged
Zulu's website
www.jmelledge.com

Offline gunsonwheels

  • Trade Count: (0)
  • Contributor
  • ***
  • Posts: 405
  • Gender: Male
Re: How to turn a Bowling Ball
« Reply #7 on: June 25, 2012, 04:48:23 PM »
IF someone wants to compare... google Holdridge Radius Cutter and you can see a wanna-be of the tool Ed has.  I am drooling with envy  :P


armorer77:

Thanks for the pics and info.  I knew there had to be a better version than the Holdridge...

GOW
Logged

Offline armorer77

  • GBO Sponsor
  • Trade Count: (8)
  • A Real Regular
  • ****
  • Posts: 541
  • Gender: Male
Re: How to turn a Bowling Ball
« Reply #8 on: June 25, 2012, 09:58:02 PM »
The only flaws to this tool are the graduation lines are ,008" and the only owners manual is in German . Ed
Logged
