Author Topic: H&R Replacement Trigger Guard and forend spacer. (Read 11344 times)

quickdtoo · « **Reply #60 on:** January 17, 2008, 02:04:31 PM »

Almost just like finishing a stock, just a lot less acreage!!

Tim

PHATINJUN · « **Reply #61 on:** January 17, 2008, 03:39:41 PM »

Now ya gone an dunit there go's whatever he had for stock

Kurt

30-06man · « **Reply #62 on:** January 18, 2008, 03:35:16 PM »

Nice. Post pics of it after your done and its on your gun. I like the way it looks now. I expected him to do that but heck that's what makes NEF and H&R what it is.

PHATINJUN · « **Reply #63 on:** January 19, 2008, 03:41:31 AM »

Tim you do know thats why most good fishing lures are shiney? Is the trigger on your big bore plated or cast? That should really look great with BC stocks? Kurt

quickdtoo · « **Reply #64 on:** January 19, 2008, 05:53:04 AM »

The hammer is plated, see the low profile hammer mod part 2 in the FAQs.

Tim

fernie · « **Reply #65 on:** January 19, 2008, 09:08:36 AM »

So has anyone here milled a spacer/trigger guard out of stock steel or brass?

?

?

quickdtoo · « **Reply #66 on:** January 19, 2008, 09:14:09 AM »

Not many, if any, have mills here Doc, I used my drill press for a mill, for my hobby purposes, it serves me well!!

I just got $100 worth of stuff from LMS to use on mine, a set of 3/8" end mills, transfer punches and a mister, to name a few items.

Tim

http://www.gboreloaded.com/forums/index.php/topic,134787.msg1098514427.html#msg1098514427

fernie · « **Reply #67 on:** January 20, 2008, 04:17:46 AM »

Tim,

That's all you need...well, time and patience, too...and if you're like me the willingness to start over again once you mess up. I've milled many parts over the years with a minimum of $..and I still have all my fingers to boot (for God's sake clamp your work)! There's nothing like the smell of oxidizing steel as you cut! It seems to me like I just worked myself into next winter's project thinking about this...

...I think I'll go in steel?

Doc

JerryKo · « **Reply #68 on:** January 23, 2008, 01:09:19 AM »

That was fast,...mine (in brass) has arrived already. I'm sorry others had to wait sooo long, but THANKS to you all and the info hear I was able to get a unique product to "customize" my BC. Can't wait to start fitting!!!!

JerryKo

knight0334 · « **Reply #69 on:** January 23, 2008, 03:09:29 AM »

Quote from: JerryKo on January 23, 2008, 01:09:19 AM

That was fast,...mine (in brass) has arrived already. I'm sorry others had to wait sooo long, but THANKS to you all and the info hear I was able to get a unique product to "customize" my BC. Can't wait to start fitting!!!!

JerryKo

How long was your process time to time of delivery?

I just pushed the button on an order for 1 of each of the spaces and trigger guards (brass/steel) not even 5 minutes ago.

PHATINJUN · « **Reply #70 on:** January 23, 2008, 06:06:59 AM »

Looks like I ordered my 2nd set about same time as you Jerry so maybe mine will so up today. Kurt

JerryKo · « **Reply #71 on:** January 23, 2008, 07:49:28 AM »

Well shucks!!!

Sorry guys I came back from the PO empty handed. I was all excited lastnite reading my email when I saw "delivered" in my messages for the TG and spacer. I guess it is not truely delivered being its not in my mailbox. Any body else get similar emails before actual arrival. The shipped day and time vary only about 25 mins from the delivered day and time.? I only discovered this today.

Oh well I suppose it should be here soon tho. I'll post back. Sorry again. I'm getting to be like a kid at Christmas with this stuff.

JerryKo

Oh I ordered on Jan 17th.

quickdtoo · « **Reply #72 on:** January 23, 2008, 08:11:31 AM »

Depends on where your mail box is, if you have a real po box at a US Post Office, it's will be delivered to the box if it fits in the box(my TG and spacer was and I have the smallest box, a #1), if not, a notice will be left in the box to pick it up at the counter. They may have mis-sorted the notice too!!

If you have a PMB (private mail box) at a contractor, it's considered delivered when the carrier leaves it with them, but it may still not be in the box when you checked.

Tim

JerryKo · « **Reply #73 on:** January 23, 2008, 11:42:47 AM »

Yep its a real US Post Office.

Jerry

quickdtoo · « **Reply #74 on:** January 23, 2008, 02:44:09 PM »

Jerry, I just realized what you're referring to, that's sent by Tom Moyers when he ships, I got that too, I think he just means it's been delivered to the post office for mailing, there's no delivery confirmation on mine, just 1st class postage on a 7x10 bubble mailer.

Tim

quickdtoo · « **Reply #75 on:** January 23, 2008, 07:57:09 PM »

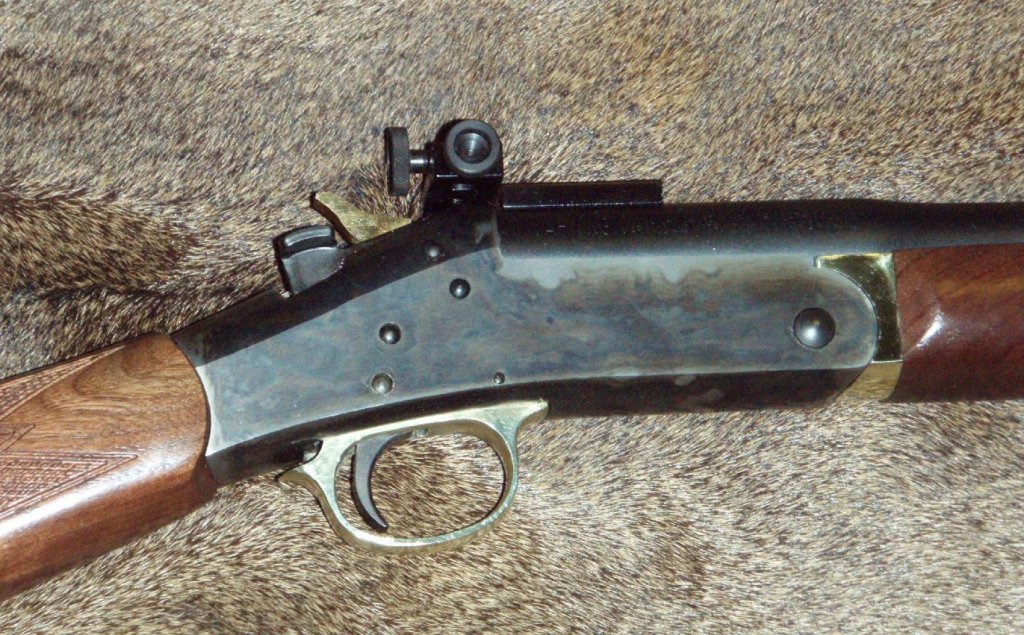

Ok, I'm to the check the fit stage, most of the rough polishing and some finish polishing done, wanted to check the fit to see how far into the frame it fits, still need to do a little more finishing where the trigger guard meets the frame and the inside of the trigger guard. I was able to heat the spacer on the electric kitchen stove burner and with the added help of a propane torch, got it red hot and straightened it out perfect. After cleaning it up on the belt sander, I used 320 wet/dry with Kroil, then 600 on both pieces, then some finish polishing with a dremel felt polisher and Flitz. Not much more and she'll be done. I'm a bit disappointed in the fit at the rear of the trigger guard, Tom took too much metal off there so it leaves a gap between the finial and the frame.

Gotta do the trigger job again, it's back up to 4lbs-12oz. $:-\$

More later,

Tim

knight0334 · « **Reply #76 on:** January 24, 2008, 01:36:11 AM »

They sure look good though, Tim.

I've grown to expect a little work when it comes to anything dealing with these Handi's. For the $ that those spacers and guards lightened our pockets - a little elbow grease is a fair trade-off.

PHATINJUN · « **Reply #77 on:** January 24, 2008, 06:09:30 AM »

Looking good Tim . Has anybody ever found any of the brass barrel bands that work? Even if they were for another gun that could be made to work on Handi's with bbl bands? Kurt

30-06man · « **Reply #78 on:** January 24, 2008, 06:50:34 AM »

Looks good Tim.

JerryKo · « **Reply #79 on:** January 24, 2008, 07:23:52 AM »

Looking great Tim,...

Made another trip to the post office at noon and I now have the pieces in hand. I know what I'll be doing this weekend.
Hope the Wife dose't mind.

Tim my spacer was void of the custom offset that yours had. I guess you had to pay more or know someone to get a fancy one like that.

JerryKo

quickdtoo · « **Reply #80 on:** January 24, 2008, 07:37:45 AM »

Yeah, that was a bit of a disappointment, but not hard to fix. The bigger disappointment is the fit at the rear of the trigger guard, I hope they aren't all like that. I sent Tom an email with a pic of the gap, he hasn't replied yet, I may have to call him if he doesn't, but I don't like to bother him if he's working making more parts!!

thanks,

Tim

JerryKo · « **Reply #81 on:** January 24, 2008, 07:47:13 AM »

Tim,

My trigger guard looks like it was ground alot there also. I do not have the rfle in hand to see. I was wondering if yours came with a pin in the hole for the trigger tho, and if I should use it as a slave as I have not made one yet. BTW I didn't mean to rub salt in the wound, I would have been ticked if mine was that bent up. Good thing you are handi with the tools.

JerryKo

quickdtoo · « **Reply #82 on:** January 24, 2008, 08:27:05 AM »

Yes, for someone that's not a DIYer, the mis-shaped spacer would have been bad news. But anyone that installed the TG had better be pretty handy with tools to do the trigger job, unless they have it done by a smith.

I used the included slave pin to install the trigger, it could use a little more taper on the ends to allow it to align better, but it worked, but so does a piece of 3/16" dowel.

Tim

JerryKo · « **Reply #83 on:** January 24, 2008, 01:58:48 PM »

Quote

But anyone that installed the TG had better be pretty handy with tools to do the trigger job, unless they have it done by a smith.

Tim,

How would you rate this project difficulty. 1- 10, 10 being hardest. And how would a typical trigger job rate?

JerryKo

quickdtoo · « **Reply #84 on:** January 24, 2008, 02:12:21 PM »

Metal finish work isn't hard with some power tools, just time consuming, that's about a 4. The holes in the TG are a little on the tight side, a pin wouldn't just slide in, I had to clean them up a bit with a drill bit by hand. Other than that, it fit pretty good. The spacer is on the thick side, so it will be tight, it's also rough so it can be thinned down and finished and won't need much if any shimming, screw holes are perfect.

The first trigger job is about a 7 or 8, but once you have one under your belt, they become a 3 or 4.

The anxiety of the first trigger job is the biggest hurdle, actually doing it isn't all that hard. Of course some people just aren't inclined to be the DIY type, so it's harder, plus if they aren't DIYers, they likely don't have the tools that go along with it. $:-\$

Tim

New Guy · « **Reply #85 on:** January 24, 2008, 04:15:51 PM »

Some brass brazing rod could be used to build up the missing material on the back of the trigger guard.

Tackleberry · « **Reply #86 on:** January 25, 2008, 10:34:04 AM »

Wonders never cease....two sets showed up in the mail today....they were ordered in October with never a word from Moyer's that the order was ever received, never a word that they were done and being shipped, nor did he ever answer my email's, nor was there any paper in the packing envelope showing what he charged my credit card.

I'm not sure where he learned his customer service skills from, but they need tuning badly.

The parts: look good so far, but I guess I won't know until I try to start fitting them. Rough casting do not bother me since i have built a couple of the old CVA colonial pistol and Kentucky rifle kits with similar brass casting that required quite a bit of work to make look right. They look pretty clean with a minimum of flash, so he's done some grinding on them to remove sprue..

I'll share the experience of cleaning them up once i get some shop time.

Dave

30-06man · « **Reply #87 on:** January 25, 2008, 03:51:57 PM »

That set looks quite a bit better than the other set that Tim pictured that was warped.

MSP Ret · « **Reply #88 on:** January 25, 2008, 03:57:55 PM »

yes, but that trigger guard still has that big section that appears to have been ground off way too much, the rear of the trigger guard where it butts up to the receiver. Whats up with that?....<><....

30-06man · « **Reply #89 on:** January 25, 2008, 04:01:44 PM »

Not too sure. He went to town with the power tools.
