Author Topic: Firecracker cannon (Read 9067 times)

b. snipes · « **Reply #60 on:** October 03, 2010, 05:54:20 PM »

Glad someone likes the wheels. A general design I also incorporate in some motorcycle wheel balance machines I make. My true enjoyment is making cannons. I have a Lyle gun replica I am working on. But the Firecracker guys are for all my small relatives that don't need something so large at this time. I will get a video of my Thunder Mugs going one of these days. For now I have a case of crackers to use up. Maybe something on the fuses so I can get a little more range. I cut the load cracker fuse in half but seldom get more than 1/2 a second out of it.
Have fun. beech

GGaskill · « **Reply #61 on:** October 03, 2010, 08:34:14 PM »

I cut the load cracker fuse in half but seldom get more than 1/2 a second out of it.

Maybe paint all but the tip of the fuse so it can only ignite at the end?

b. snipes · « **Reply #62 on:** October 04, 2010, 07:41:19 PM »

Great idea, simple enough, I will try it tomorrow! thanks, beech Fire cracker cannons....just found the thread with the Krupps specials...Wow.

moose53 · « **Reply #63 on:** October 09, 2010, 02:59:33 PM »

I finished the set of 4 cannons today . I also tried to paint the fuses ,but the solvent killed the powder in the fuse . Had to use silicone instead and that worked good.

EL Caz 66 · « **Reply #64 on:** October 09, 2010, 03:04:13 PM »

Nice looking cracker cannons there moose..

moose53 · « **Reply #65 on:** October 09, 2010, 03:08:00 PM »

Thanks, I changed the trail a little on three of the cannons.

Cat Whisperer · « **Reply #66 on:** October 10, 2010, 08:00:05 AM »

Reminds me of the 4 cannon at VMI.

moose53 · « **Reply #67 on:** October 11, 2010, 03:50:02 PM »

Tried a interesting paint treatment today . I painted one of my cannons with Rustolium Camo paint , sand color . then wiped it down with linseed oil. It changed the color to a light yellow olive and eliminated the finger prints in the mat finish.

moose53 · « **Reply #68 on:** October 25, 2010, 09:57:47 AM »

My nephew now has the cannons , he is ten years old and right at that perfect age for imagination . It also helps that his mother's sister has a firecracker outlet so they gave him 1000 firecrackers . From the looks of it he got bit with the cannon bug bad.

moose53 · « **Reply #69 on:** November 13, 2010, 04:25:16 PM »

I have always wanted to make a brass cannon . The size is not real big on the firecracker cannons , and I have the stock to do it . So thought I would give it a try , should be fun . Included are measurement for any one interested in scaling . Barrel 7in long x 1in dia , taper is 4in long x 2 deg per side 4 deg total. A interesting side note , if you make the last 1/2in of the bore on the breech end a snug fit on the firecracker , the firecracker acts as a effective seal . You can even fire BP in front of the firecracker without it coming back through the breech , very clean. Easy way to test is to wrap several layers of black tape around fuse end of firecracker for a snug fit and try it.

Double D · « **Reply #70 on:** November 14, 2010, 05:51:07 AM »

Wheels

Check these outfits for wheels. Ex 49'r provided the last one. They have some nice small solid wood wheels that would work on navel carriages

moose53 · « **Reply #71 on:** November 14, 2010, 09:18:00 AM »

Thank You DD , the wheel link is pretty cool . Lots of good information

Double D · « **Reply #72 on:** November 14, 2010, 09:46:25 AM »

Actually it is just a cut and paste from our Cannons link list sticky.

b. snipes · « **Reply #73 on:** November 15, 2010, 12:42:51 PM »

Moose, those cannons are very cool, I really like them. Especially the paint work. I am side tracked in my work on FC cannons by the Florida BB mortar thread. Got my welding supply guy hunting down a scrap cylinder of correct size. But my love is the small stuff because it is so easy to use without huge grief from the neighbors. Good work again. Posting of ones work really helps give list members ideas. beech

Double D · « **Reply #74 on:** November 15, 2010, 12:47:22 PM »

Quote from: b. snipes on November 15, 2010, 12:42:51 PM

Moose, those cannons are very cool, I really like them. Especially the paint work. I am side tracked in my work on FC cannons by the Florida BB mortar thread. Got my welding supply guy hunting down a scrap cylinder of correct size. But my love is the small stuff because it is so easy to use without huge grief from the neighbors. Good work again. Posting of ones work really helps give list members ideas. beech

The Florida BB mortar is a poor design...you can do better.

quaker4u · « **Reply #75 on:** November 17, 2010, 02:58:32 AM »

I like your firecracker cannon

I saw one on the internet a
few weeks ago and sent the picture to a friend of mine that still
works where I retired from over 5 years ago and asked him if
he was interested in making one out of brass or stainless.

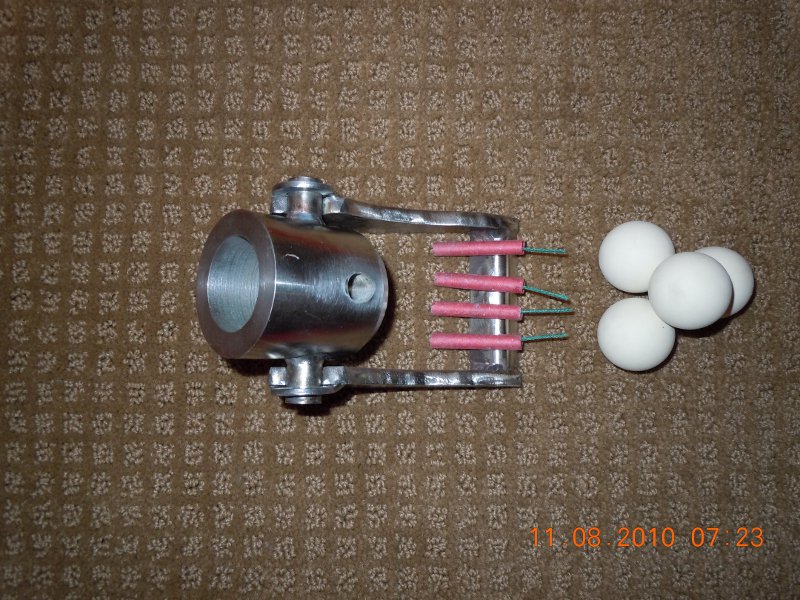

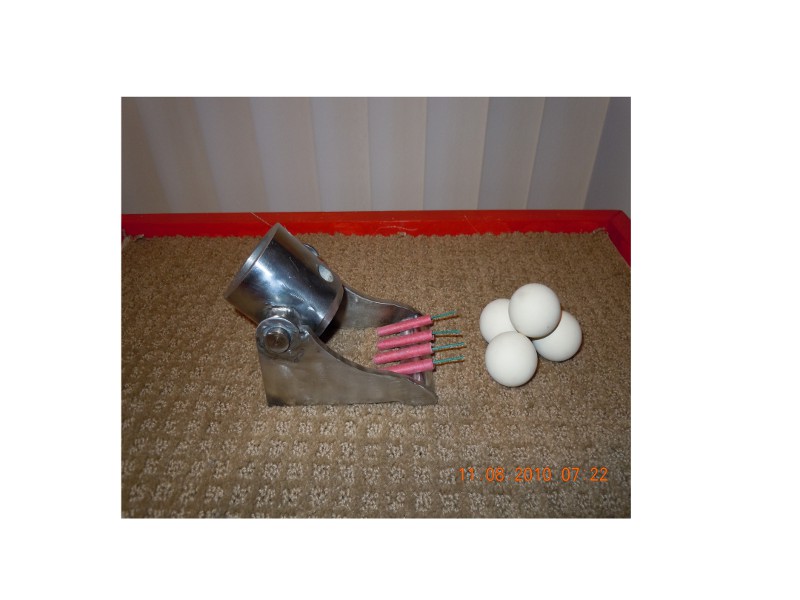

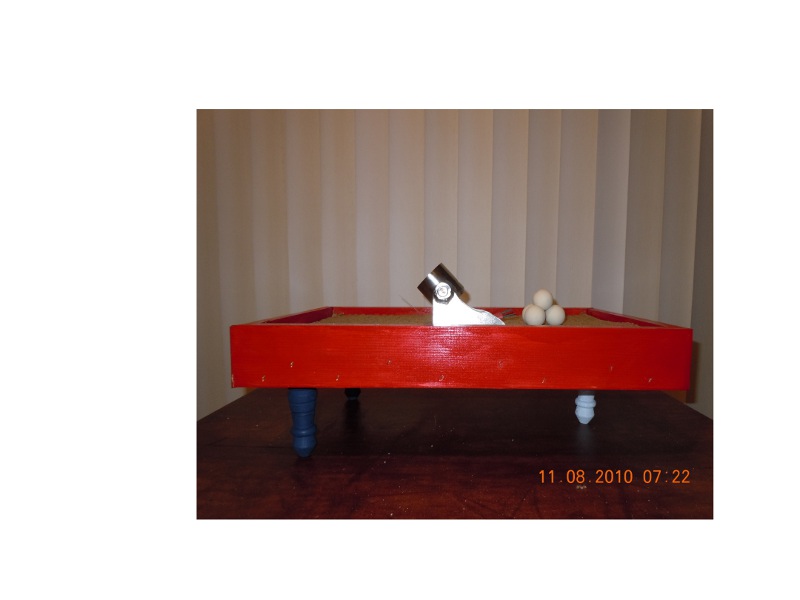

A couple of weeks he called and said he was coming over.This is the results,

quaker4u

1Southpaw · « **Reply #76 on:** November 17, 2010, 04:48:56 AM »

Cool !
Shoots ping pong balls ?

how far ?

Loks like fun

moose53 · « **Reply #77 on:** November 17, 2010, 05:46:57 AM »

How cool is that quaker4u . I see you have found that firecrackers seal them selves under proper circumstances . Firecrackers cannons are evolving very nicely, very creative ideas coming out now . Thanks for posting

quaker4u · « **Reply #78 on:** November 17, 2010, 06:44:11 AM »

They not pingpong balls. they are white rubber balls off a shaker screen
in a soda plant.The bore is 1-1/4"
Quaker4u

Cat Whisperer · « **Reply #79 on:** November 17, 2010, 07:36:05 AM »

I tried that in golf-ball caliber - getting max range of 8' with a max altitude of the same.

moose53 · « **Reply #80 on:** November 17, 2010, 04:10:53 PM »

Drilled barrel out today , 1/4 in dia for 1/2 in long at breech and 5/16 in dia the rest of the way. The 1/4 in dia is a good snug fit for 1 1/2 in firecrackers.

Cat Whisperer · « **Reply #81 on:** November 18, 2010, 12:25:16 AM »

Cool idea of using the 'boss' left from parting to help seal the breech.

moose53 · « **Reply #82 on:** November 18, 2010, 07:02:16 AM »

Yes it could work that way . I use it to keep the barrel in alignment during assembly , it is removed to make room for fuse . The snug fit on the firecracker is meant to seal the breech effectively . Preliminary tests show that it even seals from blow back of added black powder

moose53 · « **Reply #83 on:** November 18, 2010, 03:27:31 PM »

Ran a test today with a copy of quaker4u 's little mortar . With the firecracker hole at 1/4in and shooting a 1 1/4 in rubber ball , the firecracker sealed the touch hole and very little gas escaped . Will try it with added black powder to see if it will still seal .

moose53 · « **Reply #84 on:** November 19, 2010, 02:00:53 PM »

Tested the firecracker mortar with added black powder and the firecracker still seals the touch hole. Used one 44 Mag case full of powder for shot . System looks like it is very versatile , kid friendly and still upgradeable .

moose53 · « **Reply #85 on:** November 24, 2010, 02:34:16 PM »

Tig welded the base on today , it needs a little more feathering to blend in completely . It was the first brass objects I tig welded so I was pleasantly surprised how nicely they went together .

1Southpaw · « **Reply #86 on:** November 24, 2010, 02:49:13 PM »

You do some nice work .....

Love the ongoing pictures ...Keep posting

moose53 · « **Reply #87 on:** December 03, 2010, 02:19:42 PM »

I had to redo the base because it ended up to big , this is a fit as you go project

. The base is now 2 in x 1-7/8 in

moose53 · « **Reply #88 on:** February 10, 2011, 02:08:42 PM »

I was finally able to tig weld the barrel and polish it out , to see what it would look like . The tig welding rod is a different color then the base material , hopefully when it tarnishes a little it will be closer.

Cat Whisperer · « **Reply #89 on:** February 10, 2011, 02:17:56 PM »

Moose -

That just oozes elegance!

I see a calendar pix coming in the future!
