The Janz Revolver: The Best Gun You’ve Never Heard Of


In the late 1940s, Willi Korth began his work to design a revolver that would be the best in class. By the mid-1950s, he had founded the Korth company, in Ratzeburg, West Germany to produce the design.

Korth manufactured the guns for decades with assistance from various suppliers, including the Janz Technik & Labor company of Malente (about 50 miles North of Ratzeburg), who provided a variety of high quality parts for the Korth concern. In the 1990s, Korth’s business model was failing, and the company went through a bankruptcy. After the reorganization, Korth struggled to gain a footing and went through a second bankruptcy process, leaving Janz Technik & Labor with a supply of revolver parts and a bunch of unpaid bills.

The natural solution was for Janz (pronounced, “Yahnz,” en deutsch) to go into the revolver manufacturing business. As a precision engineering and manufacturing operation, with experience building Korth revolver parts, they were in a unique position to pick up where Korth left off.  Thus, in 1997, the decision was made to assemble a team to produce a revolver under the Janz Revolver marque.

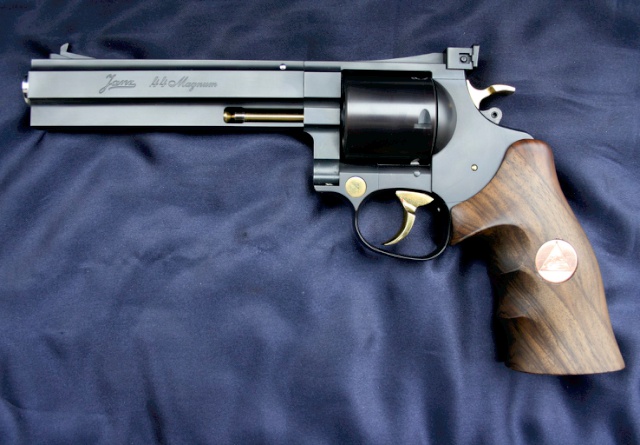

Image courtesy of Till Hezel, Janz Revolver USA

Janz hired Rene Ganz–the last personal apprentice of Willi Korth–to help with the technical effort. Ganz would provide critical experience and know-how with the Korth design, and enable the new company to step into the revolver manufacturing arena. But Ganz’s work wouldn’t be limited to helping Janz Revolver recreate the Korth design—instead, the management at Janz Revolver wanted to improve on it, and expand the versatility of the platform.  To that end, Janz proposed the following improvements to the basic Korth design:

Increase the range of calibers. The Korth revolvers were chambered in .22 Magnum (with an additional .22 LR cylinder), .32 S&W Long, and .38 Special/.357 Magnum (with an additional 9mm cylinder). The Janz company wanted their revolver to handle calibers up to .44 Magnum, and by 1999, the goal had increased to include the .454 Casull;

Improve the trigger. The Korth revolvers were known for their quality single action triggers, but the double action trigger had an unpredictable sear release, which made it difficult for shooters to anticipate the break. Janz wanted to reengineer the trigger for a more predictable double action release;

Increase versatility. The first Janz revolvers, like the Korths before them, were fixed caliber designs. However, by 2000, Janz Revolver introduced an interchangeable caliber gun, wherein the barrels and cylinders could be easily replaced by the user in just a few seconds. This allowed the user to not only change calibers, but select from a variety of barrel lengths in the same caliber. These capabilities were particularly important in Germany and other parts of Europe, where legal and practical restrictions limit the quantity of firearms that can be registered and possessed by a shooter. With a multi-caliber Janz, a single serial number could be transformed into a wide array of revolvers.
Image courtesy of Till Hezel, Janz Revolver USA

It was understood that these improvements would be made without sacrificing the quality of materials, design, and manufacturing that had established the Korth as the world’s premiere revolver.

First things first

With a goal of improving on the basic Korth design, the Janz Revolver team went to work.
One of the first challenges for the team was to map the trigger geometry and timing of the Korth. Willi Korth had never recorded any details about his trigger design, so Uwe Janz—the owner of Janz GmbH—set out to decipher the system. Uwe Janz was trained as a Master Gunsmith and Master Precision Engineer, and used his talents to break the code of the Korth trigger.  His important work in this arena was published in the book, Willi Korth – His Guns, by Verlag Veith Morgenroth.

Once the Korth trigger was understood, it could be improved upon. The timing of the double action trigger was completely redesigned by the Janz Revolver team, resulting in a trigger that could be “staged” much like a Smith & Wesson. Instead of breaking without notice, the Janz trigger could be staged just short of sear release, then carefully squeezed for a more predictable break.

Like the Korth, the Janz trigger uses a roller/disc to bear on the double action engagement surface of the hammer to reduce friction. In the Korth system, the disc can be replaced to change the trigger pull, and while this is possible in the Janz system, it’s not necessary. Instead, in the Janz system, trigger weight adjustments are made without disassembling the gun and trading parts. On the Janz Revolver, a tool is used to externally select trigger weights ranging from 1,000 grams to 2,000 grams in single action (2.2 to 4.4 pounds), or 4,000 grams to 6,000 grams in double action (8.8 to 13.2 pounds), and the setting can be read by an indicator located on the right side of the frame.  There is a trigger overtravel stop at the rear of the triggerguard window that can be precisely adjusted as well.


The first Janz Revolver prototypes and production pieces were all built by hand, but around the middle of 1999, production methods changed to include precision CNC methods. There is still a lot of hand work that goes into the fitting and fine tuning of the revolver, though.
Other features

The top strap of the Janz frame became stronger as the design matured to accommodate more powerful chamberings, and the cylinder lock control (located to the right of the hammer spur, and actuated by the shooting hand thumb) was redesigned to incorporate a lighter spring, making it easier to open the cylinder.
The cylinder lock control is seen to the right of the hammer. It is thumbed forward to release the cylinder. Image courtesy of Till Hezel, Janz Revolver USA.

As a safety measure, the Janz uses a hammer block which only allows the hammer to contact the frame-mounted firing pin when the trigger is held to the rear.

The mainspring of the Janz Revolver looks very much like a piston, and must be compressed and captured by inserting a pin (like some 1911 guide rods) to remove it from the gun. When the mainspring is removed, a threaded base remains behind, attached to bottom of the grip frame. If the shooter desires, a screwdriver can be inserted through the bottom of the grip frame to change the height of this base, which in turn changes the mainspring tension.  This system facilitates fine tuning of the mainspring to ensure reliable primer ignition.

The front sight on the Janz is interchangeable, and shooters can choose from a variety of ramp, Patridge, and other blade designs. Additionally, there is a front sight with a bead that is height-adjustable. On the aft end of the gun, the rear sight is fully adjustable for windage, and can be easily exchanged for various styles and heights.

A selection of compensators with 3 or 4 vents–either angled or straight–is available to mount on the end of 4 inch or longer barrels. The comps are precisely machined to fit over the crowned muzzle and secure to the underlug with a bolt that passes through the front and is secured with a special wrench.

The Janz revolvers are produced in a variety of finishes. Some are highly-polished stainless, while others are finished in a bead-blasted, matte stainless that is both beautiful and functional. There are high-gloss blue finishes, matte blue finishes, and even a vacuum plasma coating that looks dark blue in the shadows, but turns into a rainbow hue of colors in direct light.


The construction, fit and finish on the Janz revolvers is exemplary, reflecting the utmost of care and precision, but a true appreciation of the engineering and machining accomplishments on these guns starts with an examination of the Janz Quick Change System for barrels and cylinders.

On the right side of the frame, at the forward, lower corner of the cylinder window, is a push-button release for the cylinder. When the cylinder is opened and this push-button is depressed, the cylinder and yoke assembly can be pulled forward off the frame, and set aside.
Image courtesy of Till Hezel, Janz Revolver USA.

Once this is done, a special mounting tool is inserted into the yoke tunnel in the frame. The tool has a post on it that’s machined just like a yoke axle, and two fingers to lock the tool in place on the frame.  The purpose of this tool is to provide a mounting point for a wrench that will unlock the barrel from the frame.

When the barrel wrench is mounted to the installed tool, the pair looks like a set of pliers. When the two levers are squeezed, the wrench turns the barrel about 30 degrees—just enough to break the grip of the barrel threads. The wrench and mounting tool are then removed, and the barrel is unscrewed from the frame by hand.

At this point, the shooter is free to select from a variety of barrel lengths and calibers. Depending on the model, the shooter can install anything from a .22 caliber barrel, all the way up to a .454 Casull, with tubes measuring from 3” (in the USA, and 2.5” in Europe) to 12” long.

When a barrel is selected, it is threaded onto the frame by hand until a pin at the chamber end of the shroud approaches a machined detent in the frame. The barrel and frame threads are carefully timed so that this pin is perfectly indexed to interrupt further hand-tightening of the barrel.  At this point, the mounting tool and wrench are installed back on the gun, and the handles are squeezed together once again to snug the barrel into its final resting place.  The tools are removed from the frame, leaving you with a tightly-fitted barrel with proper headspacing.
On reassembly, the barrel is turned until the pin on the ejector rod shroud indexes to the cutout in the frame . . .
. . . and the barrel is then snugged into the final position with the provided tools (shown installed here, in the yoke area)

The appropriate cylinder for the caliber is selected and installed onto the frame by sliding the yoke axle into the frame until it locks in position. The cylinder is carefully machined in a way that prevents it from closing if there is a mismatch between the caliber of the barrel and the chambers of the cylinder. This safety feature prevents you from trying to launch a .44 caliber slug down a .357 inch bore, for example.

The whole process of removing a barrel and cylinder, then replacing them with another set, takes just over a minute to accomplish—possibly less, if you’re fast.
Teutonic engineering

The precision necessary to machine these components so that the barrel is properly indexed each time is awe-inspiring. The barrel has to fit the same way, every time, to ensure that the front sight is true and the headspacing is exact.
No unsightly barrel nuts, here. Just a beautiful, highly-polished crown. Image courtesy of Till Hezel, Janz Revolver USA.

In other barrel change systems, like the Dan Wesson design, a two-piece barrel is used. The rifled barrel is screwed into the frame and a headspace gauge is inserted between the face of the cylinder and the forcing cone to signal when the proper depth is reached. A shroud is then fitted over the barrel, and locked into place with a tensioned nut at the muzzle end, which is wrenched into place.

The system works well, and there’s evidence that the tensioning of the barrel helps to eliminate vibrations that could affect repeatability and accuracy, but it takes a lot more time and effort than the Janz system, and is rather unsophisticated by comparison. The Janz Quick Change System doesn’t require a special gauge to time the barrel, because all that work has been done by the machinist that made the gun—simply screw it in until it doesn’t go any further, then snug it up with the wrench. It’s simple, elegant, and perfect every time. Marvelous.

There’s some other neat engineering at play with the barrels and cylinders. Take the .22 caliber barrel, for instance.  Since the Janz Revolver frame is designed for centerfire cartridges, the chambers of the .22 cylinder cannot be centered on the firing pin.  Instead, the chambers are bored on a longer radius than normal, so that the firing pin contacts the rim of the cartridge, instead of the center.  This means that the bores in the .22 caliber barrels have to be drilled offset as well, to match the “higher” chamber in the cylinder.  It looks a little weird to see the .22 caliber bore crowding the top edge of the barrel extension.  In any other gun, it would be an indicator of poor quality control, but in the Janz, it’s evidence of precise engineering and machining tolerances.


The 9mm and .45 ACP cylinders are similarly unique, in that the ejector star is carefully machined so that it rests a few degrees out of alignment with the chambers. This slight offset allows the ejector to slide into the extractor groove on the autopistol cartridges, and hold them in place for firing and ejection without the use of a separate clip. In practice, the autopistol cartridges are inserted until they click into place on the offset ejector, and when it comes time to dump them after firing, all it takes is a push on the ejector rod to send them flying from the chambers.

Till advises that the hands and ratchets on these guns are mated. If a gun is sold as a kit with multiple cylinders, then each of those ratchets has to be carefully fitted to the hand in the gun’s frame.


Models



The Janz revolvers are built in three different sizes, and two of those sizes offer a choice between a fixed caliber gun, or one that includes the Quick Change System.

The Type EM is the smallest of the Janz frames, and is available in fixed calibers from .22LR to .44 Magnum. The frame is compatible with Smith & Wesson L-Frame grips, and barrel lengths from 3” to 12” are offered.

The Type EM-S is the same as the Type EM, but features the Quick Change System to allow users to convert between the different calibers.


The Type E is the medium-sized, fixed caliber frame. It can be chambered from .22LR to .454 Casull, and is compatible with Smith & Wesson N-Frame grips. Barrels range from 3” to 12” in length.

The Type E-S is the same as the Type E, but features the Quick Change system to allow users to convert between the different calibers.
Image courtesy of Till Hezel, Janz Revolver USA

The Type MA is the largest of the Janz frames. It’s a fixed caliber gun, available in either .460 S&W or .500 S&W, and is compatible with Smith & Wesson N-Frame, round-butt grips. Barrels range from 4” to 12” in length.
The Type MA is an elegant chunk of steel! Image courtesy of Till Hezel, Janz Revolver USA

The Type MA is notable because it has an additional lock that the Type EM/EM-S and E/E-S do not. In the smaller guns, the cylinder is locked at the front by a spring-loaded plunger that bears on the tip of the ejector rod, and at the rear by a piece that goes through the recoil shield. On the Type MA revolvers, an additional push-button lock is installed on the barrel underlug, which locks the forward, spring-loaded plunger in place on the tip of the ejector rod, until the button is pushed to release it.  This extra lock is necessary to withstand the forces generated by the .460 S&W and .500 S&W cartridges, which could easily overwhelm the spring-loaded plunger, absent the additional lock.


A set consisting of a black plasma-finished Janz Revolver with four barrels, four cylinders, and six calibers (the .357 Magnum and .454 Casull barrels can shoot 9mm and .45 ACP with the proper cylinder installed) stared at me from the shelf with a $30,000 price tag. Less elaborate caliber conversions halved that, and some of the fixed caliber guns were even less, but I knew that even the most affordable Janz was out of reach for me and the majority of people that shuffled the halls of SHOT Show.
Image courtesy of Till Hezel, Janz Revolver USA

There’s no doubt that the Janz Revolver is aimed at a select segment of the market. Most RevolverGuys will never spend this kind of money for a single gun–even if it can be readily converted into a variety of calibers and barrel lengths—but all of us can appreciate the talent, skill, effort and artistry that goes into making a beautiful, precision instrument like this.

All of my firearm needs can be met by revolvers that are less sophisticated and expensive than the Janz. In truth, I’m still not skilled enough to outshoot any of them—there is more inherent accuracy in any of my mass-market revolvers than I’m capable of extracting. Additionally, I have simple tastes, and don’t need fancy engraving, exotic finishes, or custom touches to stoke the wheelgun fires in my heart. I’m the kind of guy who still gets excited by the lines and beauty of pedestrian guns, like a blued Model 10 Heavy Barrel with checkered walnuts.
Image courtesy of Till Hezel, Janz Revolver USA

Still, it’s heartwarming to know that this kind of craftsmanship and precision hasn’t disappeared from the firearms world. In an age of indistinct, polymer guns with unfitted MIM parts and ugly matte finishes, it’s refreshing to let your eyes rest on a refined, highly-polished, hand-fitted, engineering marvel like the Janz Revolver. It’s even better to hold it in your hands and feel the steel parts smoothly glide across each other and make mechanical music as you pull the trigger.
Author: Mike
